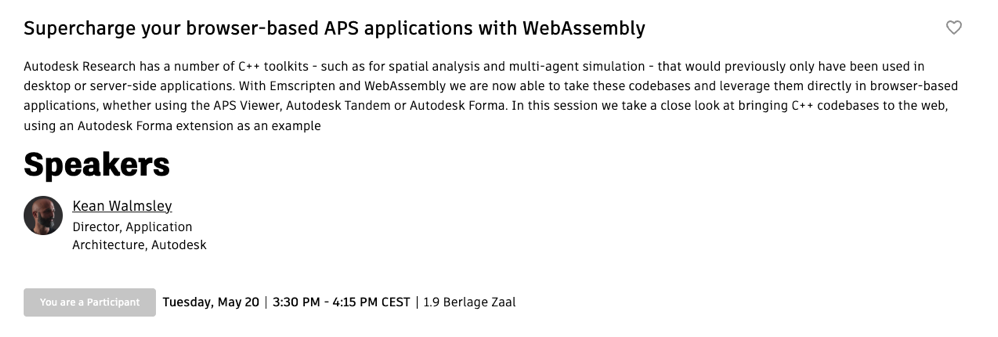

Back to reality, I’ve been preparing for the Autodesk DevCon in Amsterdam. I’ll be showing how we’ve been using WebAssembly inside Forma to integrate C++ components into the browser.

I was looking at the pathfinding implementation I’ll be showcasing during one of the demos - and looked at how it would work with a scene brought in for downtown Amsterdam - and I realised that while it worked nicely for Las Vegas (the last place I demoed it), the number of canals in Amsterdam made a naive approach of “just avoiding buildings” to make a lot less sense. I simply cannot recommend swimming across canals in Amsterdam.

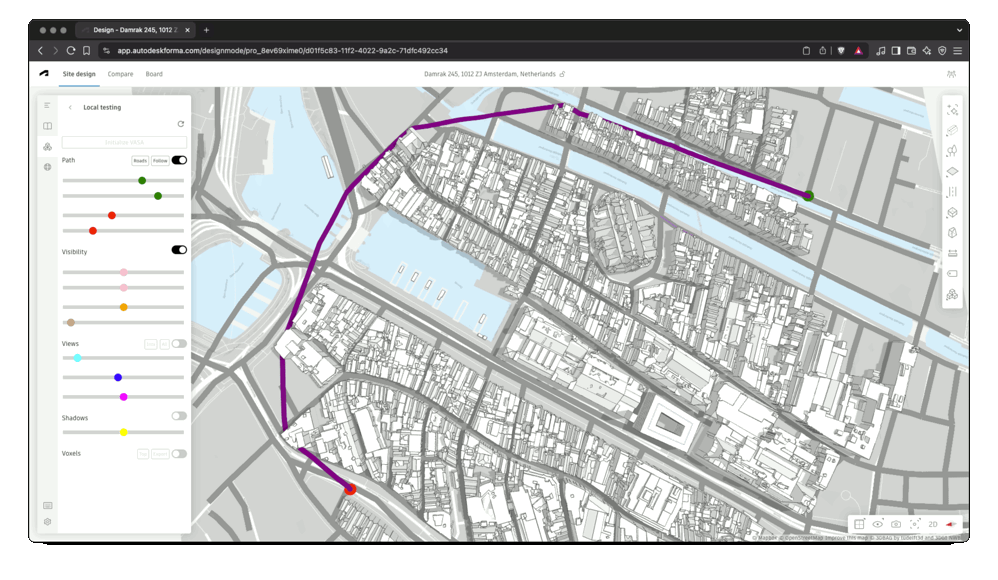

I decided to figure out how to voxellise the road network coming from Forma and (optionally) use that as the basis for pathfinding inside Forma.

My friend Håvard Høiby came to the rescue with a snippet of code and an explanation for working with roads. I had hoped to treat them like a mesh - getting the triangles representing them, which I could then throw at VASA for voxellisation - but it turned out to not be quite as simple as that:

A road does not have a 3d representation in Forma. It has a Footprint which is the horizontal alignment discretized (e.g no real curves), and it has a TerrainShape which is the visual impression on the ground.

Here’s a simple function I created based on the code Håvard provided:

async function getRoadFootprints() {
 const paths = await Forma.geometry.getPathsByCategory({ category: "road" });
 return await Promise.all(paths.map((path) => Forma.geometry.getFootprint({ path })));
}

This will return the footprint objects for each segment of road. You can loop through them and get the “coordinates” property of each, and use the X and Y values to create your road. I actually added a width to the line - by figuring out the perpendicular vector and using that to create a series of vertices representing a segment’s corners - and then created triangles from there that I could pump into VASA.

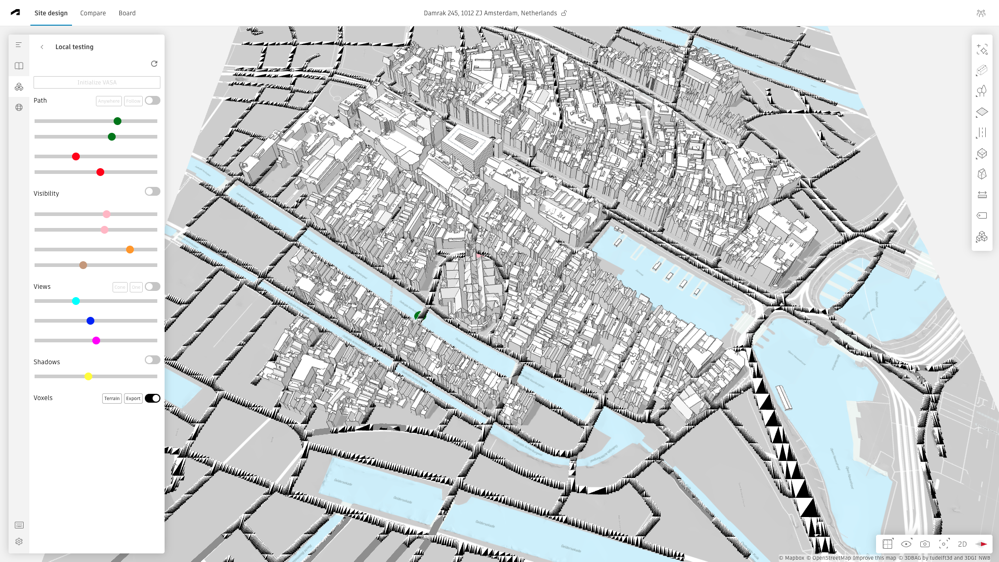

Here are some of Amsterdam’s roads, voxelised and displayed in zebra striping:
