Unlocking layers for certain AutoCAD commands using .NET

This question came up during last week’s accelerator, and is part of the reason I spent creating the last post: is it possible to selectively unlock certain layers for the duration of commands that have been specified by the user? Let’s take an example: you have layers that should remain locked, apart from when using the MOVE command (COPY and ERASE should not work).

The approach I took was to maintain a dictionary mapping command names to lists of layers to unlock. When a command is launched – which we can tell using the Document.CommandWillStart event – we check whether it has layers associated with it. If so, we unlock them for the duration of the command and lock them again on command completion.

I knew we’d want a map per document, so I went and used the approach from this post. Something I think people will find useful: rather than maintaining separate code to check for documents being created and closed, I used the “doc data” class itself to attach the command-tracking event handlers to documents when they’re opened, and its “dispose” method to remove them when closed. This makes the code much simpler, I’m sure you’ll agree.

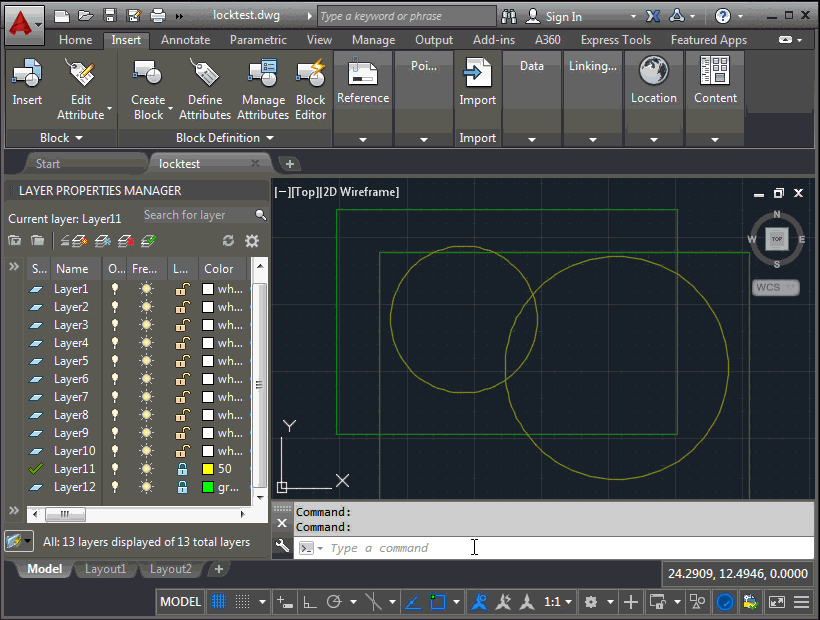

Here’s the C# code that implements the UFC command, as well as having the LL and UL commands (that use the same, slightly modified extension method) we saw last time.

using Autodesk.AutoCAD.ApplicationServices;
using Autodesk.AutoCAD.DatabaseServices;
using Autodesk.AutoCAD.EditorInput;
using Autodesk.AutoCAD.Runtime;
using System;
using System.Collections;
using System.Collections.Generic;
using System.Runtime.InteropServices;

[assembly: PerDocumentClass(typeof(LayerManipulation.UnlockCommands))]

namespace LayerManipulation
{
  public class UnlockCommands : System.IDisposable
  {
    public const string RecordName = "TtifLayerUnlockData";

    // Map commands to layers to unlock and relock

    public Dictionary<string, ObjectIdCollection> CommandMap =
      new Dictionary<string, ObjectIdCollection>();

    private Document _doc = null;
    private bool _disposed = false;

    // Constructor

    public UnlockCommands(Document doc)
    {
      _doc = doc;

      doc.UserData.Add(RecordName, this);

      // Add our command handlers

      doc.CommandWillStart += OnCommandWillStart;
      doc.CommandEnded += OnCommandEnded;
      doc.CommandCancelled += OnCommandEnded;
      doc.CommandFailed += OnCommandEnded;
    }

    void OnCommandWillStart(object sender, CommandEventArgs e)
    {
      var doc = (Document)sender;
      var uc = doc.UserData[UnlockCommands.RecordName] as UnlockCommands;

      // If the command ending is in our list, unlock the layer(s)

      if (uc != null && uc.CommandMap.ContainsKey(e.GlobalCommandName))
      {
        doc.LockOrUnlockLayers(false, uc.CommandMap[e.GlobalCommandName], false);
      }
    }

    void OnCommandEnded(object sender, CommandEventArgs e)
    {
      var doc = (Document)sender;
      var uc = doc.UserData[UnlockCommands.RecordName] as UnlockCommands;

      // If the command ending is in our list, relock the layer(s)

      if (uc != null && uc.CommandMap.ContainsKey(e.GlobalCommandName))
      {
        doc.LockOrUnlockLayers(true, uc.CommandMap[e.GlobalCommandName], false);
      }
    }

    public void Dispose()
    {
      Dispose(true);
      GC.SuppressFinalize(this);
    }

    protected virtual void Dispose(bool disposing)
    {
      if (_disposed)
        return;

      // Remove our command handlers

      _doc.CommandWillStart -= OnCommandWillStart;
      _doc.CommandEnded -= OnCommandEnded;
      _doc.CommandCancelled -= OnCommandEnded;
      _doc.CommandFailed += OnCommandEnded;

      _disposed = true;
    }
  }

  public static class Extensions
  {
    public static void LockOrUnlockLayers(
      this Document doc, bool dolock,
      ObjectIdCollection layers = null, bool ignoreCurrent = true,
      bool lockZero = false
    )
    {
      var db = doc.Database;
      var ed = doc.Editor;

      using (var tr = db.TransactionManager.StartTransaction())
      {
        var layerIds =
          (layers != null ? (IEnumerable)layers :
            (IEnumerable)tr.GetObject(db.LayerTableId, OpenMode.ForRead));

        foreach (ObjectId ltrId in layerIds)
        {
          // Don't try to lock/unlock either the current layer or layer 0
          // (depending on whether lockZero == true for the latter)

          if (
            (!ignoreCurrent || ltrId != db.Clayer) &&
            (lockZero || ltrId != db.LayerZero)
          )
          {
            // Open the layer for write and lock/unlock it

            var ltr = (LayerTableRecord)tr.GetObject(ltrId, OpenMode.ForWrite);
            ltr.IsLocked = dolock;
            ltr.IsOff = ltr.IsOff; // This is needed to force a graphics update
          }
        }
        tr.Commit();
      }

      // These two calls will result in the layer's geometry fading/unfading
      // appropriately

      ed.ApplyCurDwgLayerTableChanges();
      ed.Regen();
    }

    public static ObjectIdCollection SelectLayers(this Document doc)
    {
      var db = doc.Database;
      var ed = doc.Editor;

      // A list of the layers' names & IDs contained
      // in the current database, sorted by layer name

      var ld = new SortedList<string, ObjectId>();

      // A list of the selected layers' IDs

      var lids = new ObjectIdCollection();

      // Start by populating the list of names/IDs
      // from the LayerTable

      using (var tr = db.TransactionManager.StartOpenCloseTransaction())
      {
        var lt = (LayerTable)tr.GetObject(db.LayerTableId, OpenMode.ForRead);
        foreach (ObjectId lid in lt)
        {
          var ltr = (LayerTableRecord)tr.GetObject(lid, OpenMode.ForRead);
          ld.Add(ltr.Name, lid);
        }
      }

      // Display a numbered list of the available layers

      ed.WriteMessage("\nLayers available:");

      ed.SelectNamedLayers(ld, lids);

      return lids;
    }

    private static void SelectNamedLayers(
      this Editor ed,
      SortedList<string, ObjectId> ld,
      ObjectIdCollection lids
    )
    {
      int i = 1;
      foreach (KeyValuePair<string, ObjectId> kv in ld)
      {
        ed.WriteMessage("\n{0} - {1}", i++, kv.Key);
      }

      // We will ask the user to select from the list

      var pio = new PromptIntegerOptions("\nEnter number of layer to add: ");
      pio.LowerLimit = 1;
      pio.UpperLimit = ld.Count;
      pio.AllowNone = true;

      // And will do so in a loop, waiting for Escape or Enter to terminate

      PromptIntegerResult pir;
      do
      {
        // Select one from the list

        pir = ed.GetInteger(pio);

        if (pir.Status == PromptStatus.OK)
        {
          // Get the layer's name

          string ln = ld.Keys[pir.Value - 1];

          // And then its ID

          ObjectId lid;
          ld.TryGetValue(ln, out lid);

          // Add the layer'd ID to the list, if it's not already on it

          if (lids.Contains(lid))
          {
            ed.WriteMessage("\nLayer \"{0}\" has already been selected.", ln);
          }
          else
          {
            lids.Add(lid);
            ed.WriteMessage("\nAdded \"{0}\" to selected layers.", ln);
          }
        }
      } while (pir.Status == PromptStatus.OK);
    }
  }

  public class Commands
  {
    [CommandMethod("LL")]
    public void LockLayers()
    {
      var doc = Application.DocumentManager.MdiActiveDocument;
      if (doc == null) return;

      doc.LockOrUnlockLayers(true);
    }

    [CommandMethod("UL")]
    public void UnlockLayers()
    {
      var doc = Application.DocumentManager.MdiActiveDocument;
      if (doc == null) return;

      doc.LockOrUnlockLayers(false);
    }

    [CommandMethod("UFC")]
    public void UnlockForCommands()
    {
      var doc = Application.DocumentManager.MdiActiveDocument;
      if (doc == null) return;
      var ed = doc.Editor;

      // Store the selected commands in a list

      var cmds = new List<string>();

      PromptResult pr;
      bool cmdEntered;
      do
      {
        pr = ed.GetString("\nEnter name of command for which to unlock layers");
        cmdEntered =
          pr.Status == PromptStatus.OK && !String.IsNullOrEmpty(pr.StringResult);
        if (cmdEntered)
          cmds.Add(pr.StringResult.ToUpper());
      }
      while (cmdEntered);

      if (pr.Status == PromptStatus.Cancel)
        return;

      var ids = doc.SelectLayers();

      var uc = doc.UserData[UnlockCommands.RecordName] as UnlockCommands;
      foreach (string cmd in cmds)
      {
        if (uc.CommandMap.ContainsKey(cmd))
        {
          var existing = uc.CommandMap[cmd];
          foreach (ObjectId id in ids)
          {
            if (!existing.Contains(id))
            {
              existing.Add(id);
            }
          }
        }
        else
        {
          uc.CommandMap.Add(cmd, ids);
        }
      }

      if (cmds.Count > 0 && ids.Count > 0)
      {
        ed.WriteMessage(
          "\n{0} command{1} will now unlock {2} layers.",
          cmds.Count, cmds.Count == 1 ? "" : "s", ids.Count
        );
      }
    }
  }
}
