This request from Thomas Longnecker languished in my inbox for several weeks before I finally found the time to work on it.
It would be tremendously helpful to me if you could give an explanatory example of how to: Create a new layout, add a page-setup with plot-settings and then either delete the default viewport and create a new one or possible change the default viewport.
[…]
Within the newly created layouts I needed to set some of the general Plot setting, mainly Paper size and Plot style table.
Some of the main things for the viewport was to set the viewing area and plot scale and then lock it.
It’s clearly an area that’s of general interest – many people need to automate the creation and configuration of layout tabs – but it’s not an area I’ve spend much time looking at, myself. In the end I managed to put something together that works well – once again with a fair amount of help from the online documentation – and is hopefully fairly easy to understand: I’ve done my best to implement extension methods that should be useful for people in other contexts, which has helped keep the command implementation nice and succinct.
Here’s the C# code:
using Autodesk.AutoCAD.ApplicationServices;
using Autodesk.AutoCAD.DatabaseServices;
using Autodesk.AutoCAD.Geometry;
using Autodesk.AutoCAD.Runtime;
using System;
namespace LayoutCreation
{
public static class Extensions
{
/// <summary>
/// Reverses the order of the X and Y properties of a Point2d.
/// </summary>
/// <param name="flip">Boolean indicating whether to reverse or not.</param>
/// <returns>The original Point2d or the reversed version.</returns>
public static Point2d Swap(this Point2d pt, bool flip = true)
{
return flip ? new Point2d(pt.Y, pt.X) : pt;
}
/// <summary>
/// Pads a Point2d with a zero Z value, returning a Point3d.
/// </summary>
/// <param name="pt">The Point2d to pad.</param>
/// <returns>The padded Point3d.</returns>
public static Point3d Pad(this Point2d pt)
{
return new Point3d(pt.X, pt.Y, 0);
}
/// <summary>
/// Strips a Point3d down to a Point2d by simply ignoring the Z ordinate.
/// </summary>
/// <param name="pt">The Point3d to strip.</param>
/// <returns>The stripped Point2d.</returns>
public static Point2d Strip(this Point3d pt)
{
return new Point2d(pt.X, pt.Y);
}
/// <summary>
/// Creates a layout with the specified name and optionally makes it current.
/// </summary>
/// <param name="name">The name of the viewport.</param>
/// <param name="select">Whether to select it.</param>
/// <returns>The ObjectId of the newly created viewport.</returns>
public static ObjectId CreateAndMakeLayoutCurrent(
this LayoutManager lm, string name, bool select = true
)
{
// First try to get the layout
var id = lm.GetLayoutId(name);
// If it doesn't exist, we create it
if (!id.IsValid)
{
id = lm.CreateLayout(name);
}
// And finally we select it
if (select)
{
lm.CurrentLayout = name;
}
return id;
}
/// <summary>
/// Applies an action to the specified viewport from this layout.
/// Creates a new viewport if none is found withthat number.
/// </summary>
/// <param name="tr">The transaction to use to open the viewports.</param>
/// <param name="vpNum">The number of the target viewport.</param>
/// <param name="f">The action to apply to each of the viewports.</param>
public static void ApplyToViewport(
this Layout lay, Transaction tr, int vpNum, Action<Viewport> f
)
{
var vpIds = lay.GetViewports();
Viewport vp = null;
foreach (ObjectId vpId in vpIds)
{
var vp2 = tr.GetObject(vpId, OpenMode.ForWrite) as Viewport;
if (vp2 != null && vp2.Number == vpNum)
{
// We have found our viewport, so call the action
vp = vp2;
break;
}
}
if (vp == null)
{
// We have not found our viewport, so create one
var btr =
(BlockTableRecord)tr.GetObject(
lay.BlockTableRecordId, OpenMode.ForWrite
);
vp = new Viewport();
// Add it to the database
btr.AppendEntity(vp);
tr.AddNewlyCreatedDBObject(vp, true);
// Turn it - and its grid - on
vp.On = true;
vp.GridOn = true;
}
// Finally we call our function on it
f(vp);
}
/// <summary>
/// Apply plot settings to the provided layout.
/// </summary>
/// <param name="pageSize">The canonical media name for our page size.</param>
/// <param name="styleSheet">The pen settings file (ctb or stb).</param>
/// <param name="devices">The name of the output device.</param>
public static void SetPlotSettings(
this Layout lay, string pageSize, string styleSheet, string device
)
{
using (var ps = new PlotSettings(lay.ModelType))
{
ps.CopyFrom(lay);
var psv = PlotSettingsValidator.Current;
// Set the device
var devs = psv.GetPlotDeviceList();
if (devs.Contains(device))
{
psv.SetPlotConfigurationName(ps, device, null);
psv.RefreshLists(ps);
}
// Set the media name/size
var mns = psv.GetCanonicalMediaNameList(ps);
if (mns.Contains(pageSize))
{
psv.SetCanonicalMediaName(ps, pageSize);
}
// Set the pen settings
var ssl = psv.GetPlotStyleSheetList();
if (ssl.Contains(styleSheet))
{
psv.SetCurrentStyleSheet(ps, styleSheet);
}
// Copy the PlotSettings data back to the Layout
var upgraded = false;
if (!lay.IsWriteEnabled)
{
lay.UpgradeOpen();
upgraded = true;
}
lay.CopyFrom(ps);
if (upgraded)
{
lay.DowngradeOpen();
}
}
}
/// <summary>
/// Determine the maximum possible size for this layout.
/// </summary>
/// <returns>The maximum extents of the viewport on this layout.</returns>
public static Extents2d GetMaximumExtents(this Layout lay)
{
// If the drawing template is imperial, we need to divide by
// 1" in mm (25.4)
var div = lay.PlotPaperUnits == PlotPaperUnit.Inches ? 25.4 : 1.0;
// We need to flip the axes if the plot is rotated by 90 or 270 deg
var doIt =
lay.PlotRotation == PlotRotation.Degrees090 ||
lay.PlotRotation == PlotRotation.Degrees270;
// Get the extents in the correct units and orientation
var min = lay.PlotPaperMargins.MinPoint.Swap(doIt) / div;
var max =
(lay.PlotPaperSize.Swap(doIt) -
lay.PlotPaperMargins.MaxPoint.Swap(doIt).GetAsVector()) / div;
return new Extents2d(min, max);
}
/// <summary>
/// Sets the size of the viewport according to the provided extents.
/// </summary>
/// <param name="ext">The extents of the viewport on the page.</param>
/// <param name="fac">Optional factor to provide padding.</param>
public static void ResizeViewport(
this Viewport vp, Extents2d ext, double fac = 1.0
)
{
vp.Width = (ext.MaxPoint.X - ext.MinPoint.X) * fac;
vp.Height = (ext.MaxPoint.Y - ext.MinPoint.Y) * fac;
vp.CenterPoint =
(Point2d.Origin + (ext.MaxPoint - ext.MinPoint) * 0.5).Pad();
}
/// <summary>
/// Sets the view in a viewport to contain the specified model extents.
/// </summary>
/// <param name="ext">The extents of the content to fit the viewport.</param>
/// <param name="fac">Optional factor to provide padding.</param>
public static void FitContentToViewport(
this Viewport vp, Extents3d ext, double fac = 1.0
)
{
// Let's zoom to just larger than the extents
vp.ViewCenter =
(ext.MinPoint + ((ext.MaxPoint - ext.MinPoint) * 0.5)).Strip();
// Get the dimensions of our view from the database extents
var hgt = ext.MaxPoint.Y - ext.MinPoint.Y;
var wid = ext.MaxPoint.X - ext.MinPoint.X;
// We'll compare with the aspect ratio of the viewport itself
// (which is derived from the page size)
var aspect = vp.Width / vp.Height;
// If our content is wider than the aspect ratio, make sure we
// set the proposed height to be larger to accommodate the
// content
if (wid / hgt > aspect)
{
hgt = wid / aspect;
}
// Set the height so we're exactly at the extents
vp.ViewHeight = hgt;
// Set a custom scale to zoom out slightly (could also
// vp.ViewHeight *= 1.1, for instance)
vp.CustomScale *= fac;
}
}
public class Commands
{
[CommandMethod("CL")]
public void CreateLayout()
{
var doc = Application.DocumentManager.MdiActiveDocument;
if (doc == null)
return;
var db = doc.Database;
var ed = doc.Editor;
var ext = new Extents2d();
using (var tr = db.TransactionManager.StartTransaction())
{
// Create and select a new layout tab
var id = LayoutManager.Current.CreateAndMakeLayoutCurrent("NewLayout");
// Open the created layout
var lay = (Layout)tr.GetObject(id, OpenMode.ForWrite);
// Make some settings on the layout and get its extents
lay.SetPlotSettings(
//"ISO_full_bleed_2A0_(1189.00_x_1682.00_MM)", // Try this big boy!
"ANSI_B_(11.00_x_17.00_Inches)",
"monochrome.ctb",
"DWF6 ePlot.pc3"
);
ext = lay.GetMaximumExtents();
lay.ApplyToViewport(
tr, 2,
vp =>
{
// Size the viewport according to the extents calculated when
// we set the PlotSettings (device, page size, etc.)
// Use the standard 10% margin around the viewport
// (found by measuring pixels on screenshots of Layout1, etc.)
vp.ResizeViewport(ext, 0.8);
// Adjust the view so that the model contents fit
if (ValidDbExtents(db.Extmin, db.Extmax))
{
vp.FitContentToViewport(new Extents3d(db.Extmin, db.Extmax), 0.9);
}
// Finally we lock the view to prevent meddling
vp.Locked = true;
}
);
// Commit the transaction
tr.Commit();
}
// Zoom so that we can see our new layout, again with a little padding
ed.Command("_.ZOOM", "_E");
ed.Command("_.ZOOM", ".7X");
ed.Regen();
}
// Returns whether the provided DB extents - retrieved from
// Database.Extmin/max - are "valid" or whether they are the default
// invalid values (where the min's coordinates are positive and the
// max coordinates are negative)
private bool ValidDbExtents(Point3d min, Point3d max)
{
return
!(min.X > 0 && min.Y > 0 && min.Z > 0 &&
max.X < 0 && max.Y < 0 && max.Z < 0);
}
}
}

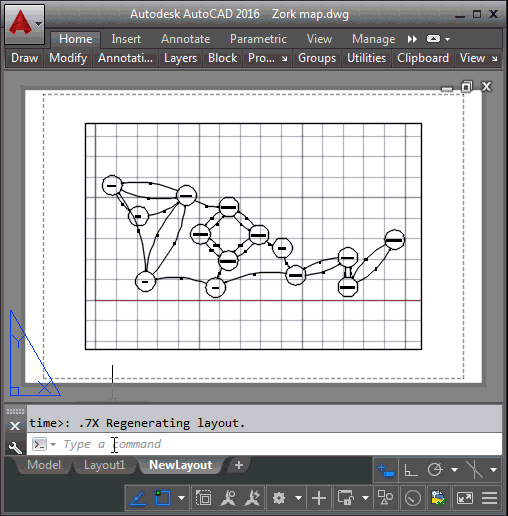

And here’s the CL command – for CreateLayout – in action.
From looking through the code you can see it does pretty much what Thomas was asking for: after creating the layout and setting the page size, plot settings table and a device, we then modify the viewport (after creating it, if viewport creation on layout creation isn’t specified in AutoCAD’s OPTIONS) to contain the extents of our database – with a little padding so that it’s not too tight. After all is done we then zoom to the extents and then with an additional .7X – again, to leave some padding.
All in all it seems to work pretty much as the manual creation process does, the advantage being you can tweak the code for your own purposes, of course. One area I know needs a little work is the extents for 3D viewports: ideally I’d project the model (or just the bounding box, if lazy) along the view direction to the XY plane… right now I’m just lopping off the Z coordinate, which is a bit lazy. I’ll try to add that capability in a future update.
Hopefully I haven’t missed anything else that’s significant: please do post a comment if you spot something.
Update:
Thanks to Parrish Husband for pointing out an opportunity to streamline the code slightly. I went ahead and made the change, and took the opportunity to fix a bug I stumbled across where I tried to fit the viewport to the extents of an empty drawing. I’ve updated the code above.
