In the last post we saw how we could integrate an HTML and JavaScript palette hosting Cytoscape.js into AutoCAD to map progress made in a text adventure. In today’s post we take the additional step of converting the graph data into AutoCAD geometry.
To be clear, there’s a bit more to this post than having fun mapping old-school interactive fiction inside AutoCAD: I can think of lots of scenarios where you might want to use a comparable tool to build a graph of data and lay it out manually before bringing the graph into AutoCAD as native geometry. But I’m all for finding fun applications for technology, and this is certainly one of those.

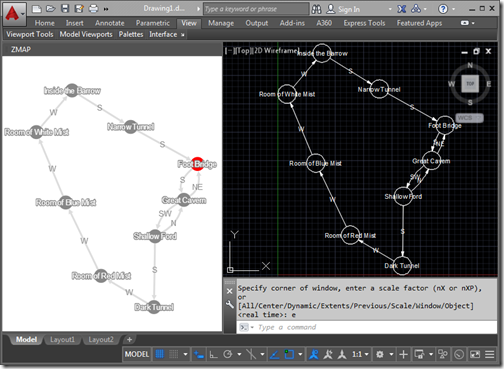

Here are the results I ended up getting from mapping Zork II inside AutoCAD and bringing the data across using the ZMOUT command:
I’ve now posted the complete project to GitHub. I also created a fork of the dependent zlr--git project, as I had to extend it to support my SetLocation() callback. Which allows the AutoCAD plug-in to determine the internal ID of the locations being visited in the game.
If you just want to have a play, you can get the binaries from here (and click “View Raw” to download). Extract them to a folder on your system and NETLOAD AcadZMachine.dll into AutoCAD (this should work with AutoCAD 2015 onwards, at least). From there you’ll be able to open the mapping palette using ZMAP, run ZORK, ZORK2 or ZORK3 (or use ZM to load your own Z-Machine file) and then – once you’ve executed from the game – use ZMOUT to output the map into AutoCAD. I could also have built a button to do this, but for now it’s just there as a command.
Here’s the main source file, so you can scan some of what goes on to convert Cytoscape nodes and edges into native AutoCAD geometry:
using Autodesk.AutoCAD.ApplicationServices;
using Autodesk.AutoCAD.DatabaseServices;
using Autodesk.AutoCAD.EditorInput;
using Autodesk.AutoCAD.Geometry;
using Autodesk.AutoCAD.Runtime;
using Autodesk.AutoCAD.Windows;
using Newtonsoft.Json;
using Newtonsoft.Json.Linq;
using System;
using System.Collections.Generic;
using System.IO;
using System.Reflection;
using System.Runtime.InteropServices;
using ZLR.VM;
namespace AcadZMachine
{
public static class Extensions
{
public static bool? GetYesOrNo(
this Editor ed, string prompt, bool yesDefault = true
)
{
var pko = new PromptKeywordOptions(prompt + " [Yes/No]: ", "Yes No");
pko.Keywords.Default = yesDefault ? "Yes" : "No";
var pr = ed.GetKeywords(pko);
if (pr.Status != PromptStatus.OK)
return null;
return (pr.StringResult == "Yes");
}
public static string GetFilename(
this Editor ed, string prompt, bool openFile = true
)
{
PromptFileNameResult pfnr;
if (openFile)
{
var pofo = new PromptOpenFileOptions(prompt);
pfnr = ed.GetFileNameForOpen(pofo);
}
else
{
var psfo = new PromptSaveFileOptions(prompt);
pfnr = ed.GetFileNameForSave(psfo);
}
if (pfnr.Status != PromptStatus.OK)
return null;
return pfnr.StringResult;
}
public static Point3d MidPoint(this Curve c)
{
return c.StartPoint + (c.EndPoint - c.StartPoint) * 0.5;
}
}
public class Commands
{
[DllImport(
"AcJsCoreStub.crx", CharSet = CharSet.Auto,
CallingConvention = CallingConvention.Cdecl,
EntryPoint = "acjsInvokeAsync")]
extern static private int acjsInvokeAsync(
string name, string jsonArgs
);
internal class Node
{
public string Name { get; set; }
public Point3d Position { get; set; }
}
internal class Edge
{
public string Name { get; set; }
public Point3d Start { get; set; }
public Point3d End { get; set; }
}
private PaletteSet _isops = null;
[CommandMethod("ZM")]
public void ZMachine()
{
var doc = Application.DocumentManager.MdiActiveDocument;
if (doc == null) return;
var ed = doc.Editor;
var pofo = new PromptOpenFileOptions("File to load");
var pfnr = ed.GetFileNameForOpen(pofo);
if (pfnr.Status == PromptStatus.OK)
ExecuteGame(pfnr.StringResult, ed);
}
[CommandMethod("ZORK")]
public void Zork()
{
var doc = Application.DocumentManager.MdiActiveDocument;
if (doc == null) return;
var ed = doc.Editor;
var asm = Assembly.GetExecutingAssembly();
ExecuteGame(Path.GetDirectoryName(asm.Location) + "\\zork1.z3", ed);
}
[CommandMethod("ZORK2")]
public void Zork2()
{
var doc = Application.DocumentManager.MdiActiveDocument;
if (doc == null) return;
var ed = doc.Editor;
var asm = Assembly.GetExecutingAssembly();
ExecuteGame(Path.GetDirectoryName(asm.Location) + "\\zork2.z3", ed);
}
[CommandMethod("ZORK3")]
public void Zork3()
{
var doc = Application.DocumentManager.MdiActiveDocument;
if (doc == null) return;
var ed = doc.Editor;
var asm = Assembly.GetExecutingAssembly();
ExecuteGame(Path.GetDirectoryName(asm.Location) + "\\zork3.z3", ed);
}
void ExecuteGame(string gameFile, Editor ed)
{
var showScore = ed.GetYesOrNo("Show the score as we go?", false);
if (!showScore.HasValue) return;
var saveCmds = ed.GetYesOrNo("Save commands to file?", false);
if (!saveCmds.HasValue) return;
var cmdFile = "";
bool open = false;
if (saveCmds.Value)
{
cmdFile = ed.GetFilename("Command file to write", false);
open = false;
}
else
{
var openCmds = ed.GetYesOrNo("Read commands from file?", false);
if (!openCmds.HasValue) return;
if (openCmds.Value)
{
cmdFile = ed.GetFilename("Command file to read", true);
open = true;
}
}
try
{
var gameStream =
new FileStream(gameFile, FileMode.Open, FileAccess.Read);
var io = new AutoCADIONodeMap(ed, showScore.Value, cmdFile);
var zm = new ZMachine(gameStream, io);
if (!String.IsNullOrWhiteSpace(cmdFile))
{
if (open)
zm.ReadingCommandsFromFile = true;
else
zm.WritingCommandsToFile = true;
}
zm.PredictableRandom = false;
zm.Run();
}
catch (System.Exception ex)
{
ed.WriteMessage("{0} ({1})", ex.Message, ex.GetType().Name);
}
}
[CommandMethod("ZMAP")]
public void ZMap()
{
var asm = Assembly.GetExecutingAssembly();
var loc = Path.GetDirectoryName(asm.Location) + "\\index.html";
_isops =
ShowPalette(
_isops,
new Guid("FFE8CBF9-752A-461C-8A71-55AEF29F3CA6"),
"ZMAP",
"Zork Map",
new System.Uri(loc)
);
}
[CommandMethod("ZMOUT")]
public void ZMapOut()
{
var graph = acjsInvokeAsync("getgraph", "{}");
}
[JavaScriptCallback("CreateGraph")]
public string CreateGraph(string jsonArgs)
{
// The radius for our node circles and the height of our text
const double rad = 20, txtHeight = 10;
var doc = Application.DocumentManager.MdiActiveDocument;
if (doc == null) return "";
var db = doc.Database;
var ed = doc.Editor;
JArray jedges = null, jnodes = null;
using (var sr = new StringReader(jsonArgs))
{
var jr = new JsonTextReader(sr);
var js = new JsonSerializer();
var jo = js.Deserialize(jr) as JObject;
if (jo != null)
{
foreach (var jp in jo.Properties())
{
if (jp.Name == "edges")
{
jedges = jp.Value as JArray;
}
else if (jp.Name == "nodes")
{
jnodes = jp.Value as JArray;
}
}
}
}
var nodes = new Dictionary<String, Node>();
var edges = new Dictionary<String, Edge>();
GetNodesAndEdges(jnodes, jedges, nodes, edges);
if (nodes.Count > 0)
{
using (var dlock = doc.LockDocument())
{
using (var tr = doc.TransactionManager.StartTransaction())
{
var btr =
(BlockTableRecord)tr.GetObject(
db.CurrentSpaceId, OpenMode.ForWrite
);
// Rather than add the entities to the database directly,
// gather them in a collection as we'll check their extents
// and transform them when we add them
var ents = new List<Entity>();
// Create our nodes
foreach (var kvnode in nodes)
{
var node = kvnode.Value;
// A node is a circle with some text
ents.Add(new Circle(node.Position, Vector3d.ZAxis, rad));
ents.Add(CreateText(node.Position, txtHeight, node.Name));
}
// Create our edges
foreach (var kvedge in edges)
{
var edge = kvedge.Value;
// Edges that go both ways will be arcs
bool createArc = edges.ContainsKey(ReverseEdge(kvedge.Key));
// An edge is a curve with an arrowhead and some text
var c = CreateEdge(rad, edge, createArc);
ents.Add(c);
ents.Add(CreateArrowhead(txtHeight, c));
ents.Add(CreateText(c.MidPoint(), txtHeight, edge.Name));
}
// Collect the extents of our entities
var ext = new Extents3d();
foreach (var ent in ents)
{
if (ent.Bounds.HasValue)
ext.AddExtents(ent.Bounds.Value);
}
// We'll displace them to start at the origin (as they're
// created in negative space - as we negate the Y value -
// we can assume the MaxPoint is going to be the origin)
var m = Matrix3d.Displacement(-ext.MinPoint.GetAsVector());
foreach (var ent in ents)
{
ent.TransformBy(m);
btr.AppendEntity(ent);
tr.AddNewlyCreatedDBObject(ent, true);
}
// Commit the transaction before we finish
tr.Commit();
}
// Zoom to the extents of our map
doc.SendStringToExecute("_.ZOOM _E ", false, false, false);
}
}
return "";
}
// Extract node and edge objects from our JSON data
private void GetNodesAndEdges(
JArray jnodes, JArray jedges,
Dictionary<String, Node> nodes, Dictionary<String, Edge> edges
)
{
foreach (JObject jnode in jnodes)
{
var d = jnode["data"];
var p = jnode["pos"];
var node = new Node();
node.Name = d["name"].ToString();
node.Position =
new Point3d(
Double.Parse(p["x"].ToString()),
-Double.Parse(p["y"].ToString()),
0
);
nodes.Add(d["id"].ToString(), node);
}
foreach (JObject jedge in jedges)
{
var edge = new Edge();
edge.Name = jedge["name"].ToString();
var src = jedge["source"].ToString();
var trg = jedge["target"].ToString();
edge.Start = nodes[src].Position;
edge.End = nodes[trg].Position;
edges.Add(jedge["id"].ToString(), edge);
}
}
// Geometry creation helper functions
private static DBText CreateText(Point3d pos, double height, string txt)
{
var t = new DBText();
t.Normal = Vector3d.ZAxis;
t.Position = pos;
t.Justify = AttachmentPoint.MiddleCenter;
t.AlignmentPoint = pos;
t.TextString = txt;
t.Height = height;
return t;
}
private static Curve CreateEdge(double rad, Edge edge, bool createArc)
{
Curve c = null;
if (createArc)
{
// Calculate a mid-point for our arc
var vec = edge.End - edge.Start;
var len = vec.Length;
var vmid = edge.Start + (vec * 0.5);
vec = vec.RotateBy(Math.PI * 0.5, Vector3d.ZAxis);
vec = -0.1 * vec;
var mid = vmid + vec;
// Create the initial arc between the center points of the
// two nodes, as well as circles around the nodes
var ca = new CircularArc3d(edge.Start, mid, edge.End);
var c1 = new CircularArc3d(edge.Start, Vector3d.ZAxis, rad);
var c2 = new CircularArc3d(edge.End, Vector3d.ZAxis, rad);
// Intersect the arc with the two circles
var pts1 = ca.IntersectWith(c1);
var pts2 = ca.IntersectWith(c2);
// Adjust the start and end of the arc, effectively trimming
// it to the circles
var newStart = edge.Start;
var newEnd = edge.End;
if (pts1 != null && pts1.Length > 0)
newStart = pts1[0];
if (pts2 != null && pts2.Length > 0)
newEnd = pts2[0];
// Create our new, trimmed arc, and the database version of it
var ca2 = new CircularArc3d(newStart, mid, newEnd);
c = Arc.CreateFromGeCurve(ca2);
}
else
{
// Create the line - adjusted to go from the node circles)
// and add it to the database
var vec = edge.End - edge.Start;
var unit = vec / vec.Length;
c = new Line(edge.Start + unit * rad, edge.End - unit * rad);
}
return c;
}
private static Entity CreateArrowhead(double arrowSize, Curve c)
{
// Create the arrowhead
var s =
new Solid(
new Point3d(-0.25 * arrowSize, -arrowSize, 0),
Point3d.Origin,
new Point3d(0.25 * arrowSize, -arrowSize, 0)
);
// Tweak the rotation of the arrowhead depending on the arrival
// angle of the edge
var vec2 = c.GetFirstDerivative(c.EndParam);
var rot = (new Vector3d(0, 1, 0)).GetAngleTo(vec2);
if (vec2.X > 0) // If the arrival is from the left, flip it
rot = -rot;
var m =
Matrix3d.Displacement(c.EndPoint - Point3d.Origin).
PostMultiplyBy(
Matrix3d.Rotation(
rot,
Vector3d.ZAxis,
Point3d.Origin
)
);
s.TransformBy(m);
return s;
}
// Edge ids are "src-trg": to find the reverse direction we want "trg-src"
private string ReverseEdge(string id)
{
const string sep = "-";
return
id.Contains(sep) ?
id.Substring(id.IndexOf(sep) + 1) + sep +
id.Substring(0, id.IndexOf(sep)) : "";
}
// Helper function to show a palette
private static PaletteSet ShowPalette(
PaletteSet ps, Guid guid, string cmd, string title, Uri uri,
bool reload = false
)
{
// If the reload flag is true we'll force an unload/reload
// (this isn't strictly needed - given our refresh function -
// but I've left it in for possible future use)
if (reload && ps != null)
{
// Close the palette and make sure we process windows
// messages, otherwise sizing is a problem
ps.Close();
System.Windows.Forms.Application.DoEvents();
ps.Dispose();
ps = null;
}
if (ps == null)
{
ps = new PaletteSet(cmd, guid);
}
else
{
if (ps.Visible)
return ps;
}
if (ps.Count != 0)
ps.Remove(0);
ps.Add(title, uri);
ps.Visible = true;
return ps;
}
}
}
I ended up using Cola.js to help with the graph layout, although I do some automatic placement based on the direction the user chose, so the main benefit may have been the auto-resizing as nodes get added to the graph (which I assume isn’t specific to Cola at all). Still, I can well imagine Cola being a useful module for automatically managing the layout of complex graphs.
