I just missed my connecting flight in Chicago, so have 3 hours to pass until the next, and decided to post some code I finally got around to writing on the plane from Zurich.
I've had a few requests for code showing how to plot using the .NET API in AutoCAD. There's an existing ObjectARX (C++) sample on the SDK, under samples/editor/AsdkPlotAPI, but there isn't a publicly posted .NET version right now.
Here's the C# code I put together. Please bear in mind that it was written during less than ideal coding conditions, and I haven't spent a substantial amount of time going through it... it seems to work fine for me, but do post a comment if you have trouble with it.
using Autodesk.AutoCAD.Runtime;
using Autodesk.AutoCAD.ApplicationServices;
using Autodesk.AutoCAD.DatabaseServices;
using Autodesk.AutoCAD.EditorInput;
using Autodesk.AutoCAD.Geometry;
using Autodesk.AutoCAD.PlottingServices;
namespace PlottingApplication
{
public class PlottingCommands
{
[CommandMethod("simplot")]
static public void SimplePlot()
{
Document doc =
Application.DocumentManager.MdiActiveDocument;
Editor ed = doc.Editor;
Database db = doc.Database;
Transaction tr =
db.TransactionManager.StartTransaction();
using (tr)
{
// We'll be plotting the current layout
BlockTableRecord btr =
(BlockTableRecord)tr.GetObject(
db.CurrentSpaceId,
OpenMode.ForRead
);
Layout lo =
(Layout)tr.GetObject(
btr.LayoutId,
OpenMode.ForRead
);
// We need a PlotInfo object
// linked to the layout
PlotInfo pi = new PlotInfo();
pi.Layout = btr.LayoutId;
// We need a PlotSettings object
// based on the layout settings
// which we then customize
PlotSettings ps =
new PlotSettings(lo.ModelType);
ps.CopyFrom(lo);
// The PlotSettingsValidator helps
// create a valid PlotSettings object
PlotSettingsValidator psv =
PlotSettingsValidator.Current;
// We'll plot the extents, centered and
// scaled to fit
psv.SetPlotType(
ps,
Autodesk.AutoCAD.DatabaseServices.PlotType.Extents
);
psv.SetUseStandardScale(ps, true);
psv.SetStdScaleType(ps, StdScaleType.ScaleToFit);
psv.SetPlotCentered(ps, true);
// We'll use the standard DWF PC3, as
// for today we're just plotting to file
psv.SetPlotConfigurationName(
ps,
"DWF6 ePlot.pc3",
"ANSI_A_(8.50_x_11.00_Inches)"
);
// We need to link the PlotInfo to the
// PlotSettings and then validate it
pi.OverrideSettings = ps;
PlotInfoValidator piv =
new PlotInfoValidator();
piv.MediaMatchingPolicy =
MatchingPolicy.MatchEnabled;
piv.Validate(pi);
// A PlotEngine does the actual plotting
// (can also create one for Preview)
if (PlotFactory.ProcessPlotState ==
ProcessPlotState.NotPlotting)
{
PlotEngine pe =
PlotFactory.CreatePublishEngine();
using (pe)
{
// Create a Progress Dialog to provide info
// and allow thej user to cancel
PlotProgressDialog ppd =
new PlotProgressDialog(false, 1, true);
using (ppd)
{
ppd.set_PlotMsgString(
PlotMessageIndex.DialogTitle,
"Custom Plot Progress"
);
ppd.set_PlotMsgString(
PlotMessageIndex.CancelJobButtonMessage,
"Cancel Job"
);
ppd.set_PlotMsgString(
PlotMessageIndex.CancelSheetButtonMessage,
"Cancel Sheet"
);
ppd.set_PlotMsgString(
PlotMessageIndex.SheetSetProgressCaption,
"Sheet Set Progress"
);
ppd.set_PlotMsgString(
PlotMessageIndex.SheetProgressCaption,
"Sheet Progress"
);
ppd.LowerPlotProgressRange = 0;
ppd.UpperPlotProgressRange = 100;
ppd.PlotProgressPos = 0;
// Let's start the plot, at last
ppd.OnBeginPlot();
ppd.IsVisible = true;
pe.BeginPlot(ppd, null);
// We'll be plotting a single document
pe.BeginDocument(
pi,
doc.Name,
null,
1,
true, // Let's plot to file
"c:\\test-output"
);
// Which contains a single sheet
ppd.OnBeginSheet();
ppd.LowerSheetProgressRange = 0;
ppd.UpperSheetProgressRange = 100;
ppd.SheetProgressPos = 0;
PlotPageInfo ppi = new PlotPageInfo();
pe.BeginPage(
ppi,
pi,
true,
null
);
pe.BeginGenerateGraphics(null);
pe.EndGenerateGraphics(null);
// Finish the sheet
pe.EndPage(null);
ppd.SheetProgressPos = 100;
ppd.OnEndSheet();
// Finish the document
pe.EndDocument(null);
// And finish the plot
ppd.PlotProgressPos = 100;
ppd.OnEndPlot();
pe.EndPlot(null);
}
}
}
else
{
ed.WriteMessage(
"\nAnother plot is in progress."
);
}
}
}
}
}
A few comments on the code: I chose to plot to a file using the standard DWF plot driver/PC3 file, mainly as it avoids having to second-guess what printers/plotters everyone uses. :-) The SDK sample populates comboboxes in a dialog to allow selection of the device and the media size, but I've just gone with a choice that should work on all systems.

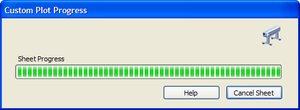

Here's what you should see when you launch the SIMPLOT command:
The output file should be created in "c:\test-output.dwf".
I added a simple check to fail gracefully when another plot is in progress... as this code will drive either a foreground or a background plot (depending on the value of the BACKGROUNDPLOT system variable), there's clear scope for failure if the code doesn't check via PlotFactory.ProcessPlotState (or handle the exception if another plot is already happening when you call PlotFactory.CreatePublishEngine()).
Now that I'm online I've found there's quite a similar code sample to the ADN site (also converted from the original SDK sample, I suspect):
