While my last post on tables was apparently interesting, it turns out it didn’t actually address the question that inspired it. Oh well.
Here’s a recent comment that gave greater clarity on the requirement:
Do you know those no smoking signs commonly seen in public places: a cigarette with a red cross struck through it. Can a similar thing be done programmatically in a table with the strike through happening through a number. A picture is worth a 1000 words: http://imgur.com/gallery/qPzEm...
In other words, can a block be inserted into a particular cell which already contains a number value? side by side or overlaid perhaps.
I found this to be a really interesting question… While I didn’t think there was a way to add an additional symbol, as such, to an individual cell, I did remember seeing the Cell.SetBlockAttributeValue() method. If we can apply a custom attribute value to an individual cell, then it should be a simple matter of creating a block with an attribute we can use to display our cell “contents”, right?

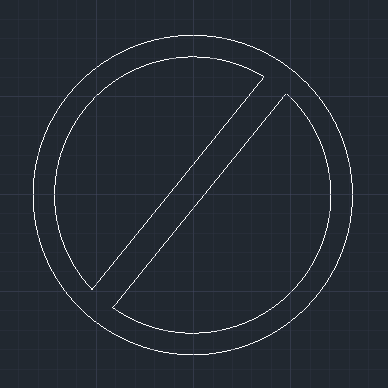

Anyway, armed with this hypothesis, I went ahead and created my initial “banned” symbol using CIRCLEs, LINEs, TRIM and a solid HATCH.
I then added an attribute definition and BLOCKed the whole thing with the name “BANNED”.
I went ahead and updated the C# code we saw previously, adding a new CBA command (for CreateBlockWithAttributes). This command does something interesting: it adds the additional index column that we added via the MBT command but instead of using a simple row index as the cell’s contents it determines whether the row is odd or even: if it’s odd then we add our banned symbol as the cell contents and then the row index as the attribute value. To do this we need to first get the ObjectId of the BANNED block but also of the AttributeDefinition it contains (we just take the first one we find, for simplicity).

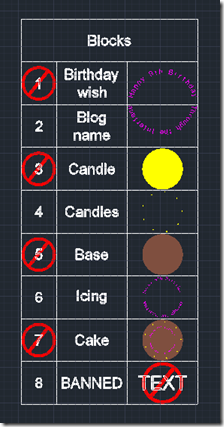

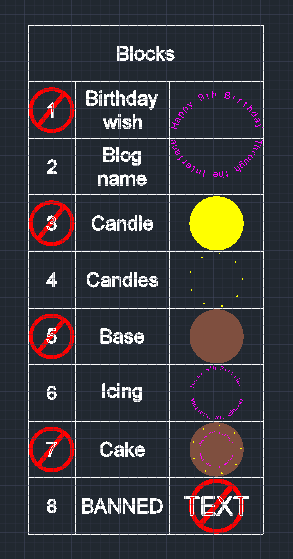

Here’s the table that gets created by the CBA command:
Here’s the updated C# code:
using Autodesk.AutoCAD.ApplicationServices;
using Autodesk.AutoCAD.DatabaseServices;
using Autodesk.AutoCAD.EditorInput;
using Autodesk.AutoCAD.Runtime;
namespace TableCreationAndModification
{
public class Commands
{
const double rowHeight = 3.0, colWidth = 5.0;
const double textHeight = rowHeight * 0.25;
[CommandMethod("CBA")]
static public void CreateBlockTableWithAttributes()
{
const string symbol = "BANNED";
var doc = Application.DocumentManager.MdiActiveDocument;
if (doc == null)
return;
var db = doc.Database;
var ed = doc.Editor;
var pr = ed.GetPoint("\nEnter table insertion point");
if (pr.Status != PromptStatus.OK)
return;
using (var tr = doc.TransactionManager.StartTransaction())
{
var bt = (BlockTable)tr.GetObject(db.BlockTableId, OpenMode.ForRead);
// We'll populate these variables if the drawing contains a block
// with an attribute we can use
var banned = ObjectId.Null;
var bannedAttId = ObjectId.Null;
if (bt.Has(symbol))
{
// We have found a NOENTRY block
banned = bt[symbol];
// Now let's check its contents for AttributeDefinitions
var btr = tr.GetObject(banned, OpenMode.ForRead) as BlockTableRecord;
var attDefClass = RXObject.GetClass(typeof(AttributeDefinition));
foreach (var id in btr)
{
// The ID of the 1st AttDef we find gets stored in a variable
if (id.ObjectClass.IsDerivedFrom(attDefClass))
{
bannedAttId = id;
break;
}
}
}
// Create the table, set its style and default row/column size
var tb = new Table();
tb.TableStyle = db.Tablestyle;
tb.SetRowHeight(rowHeight);
tb.SetColumnWidth(colWidth);
tb.Position = pr.Value;
// Set the header cell
var head = tb.Cells[0, 0];
head.Value = "Blocks";
head.Alignment = CellAlignment.MiddleCenter;
head.TextHeight = textHeight;
// Insert an additional two columns, the skinny one is for the index
tb.InsertColumns(0, colWidth, 1);
tb.InsertColumns(0, colWidth * 0.5, 1);
// Loop through the blocks in the drawing, creating rows
foreach (var id in bt)
{
var btr = (BlockTableRecord)tr.GetObject(id, OpenMode.ForRead);
// Only care about user-insertable blocks
if (!btr.IsLayout && !btr.IsAnonymous)
{
// Add a row
tb.InsertRows(tb.Rows.Count, rowHeight, 1);
var rowIdx = tb.Rows.Count - 1;
// The first is the index
var first = tb.Cells[rowIdx, 0];
// If we have our "no entry" block and attribute - and the index
// is an odd number - then use it for the contents
if (
banned != ObjectId.Null &&
bannedAttId != ObjectId.Null &&
rowIdx % 2 != 0
)
{
// Set the BTR on the cell and then the value of the block's
// attribute to be a string of the row's index
first.BlockTableRecordId = banned;
first.SetBlockAttributeValue(bannedAttId, rowIdx.ToString());
}
else
{
// Otherwise we just set the index as the cell contents
first.Value = rowIdx;
first.TextHeight = textHeight;
}
first.Alignment = CellAlignment.MiddleCenter;
// The second cell will hold the block name
var second = tb.Cells[rowIdx, 1];
second.Value = btr.Name;
second.Alignment = CellAlignment.MiddleCenter;
second.TextHeight = textHeight;
// The third will contain a thumbnail of the block
var third = tb.Cells[rowIdx, 2];
third.BlockTableRecordId = id;
}
}
// Now we add the table to the current space
var sp =
(BlockTableRecord)tr.GetObject(db.CurrentSpaceId, OpenMode.ForWrite);
sp.AppendEntity(tb);
// And to the transaction, which we then commit
tr.AddNewlyCreatedDBObject(tb, true);
tr.Commit();
}
}
[CommandMethod("MBT")]
static public void ModifyBlockTable()
{
var doc = Application.DocumentManager.MdiActiveDocument;
if (doc == null)
return;
var ed = doc.Editor;
// Let's start by asking for a table to be selected
var per = ed.GetEntity("\nSelect table");
if (per.Status != PromptStatus.OK)
return;
// Start our transaction
using (var tr = doc.TransactionManager.StartTransaction())
{
// Open the object and see whether it's table...
var tb = tr.GetObject(per.ObjectId, OpenMode.ForRead) as Table;
if (tb != null)
{
// If it is, we need to be able to modify it
tb.UpgradeOpen();
// Insert our column, making it a bit skinnier than the others
tb.InsertColumns(0, colWidth * 0.5, 1);
// Populate the cells in this new column (starting with 1,
// as if we ask for 0 we'll get the header cell, too)
for (int i=1; i < tb.Rows.Count; i++)
{
// Insert the index into the cell with appropriate text size
// and justification
var num = tb.Cells[i, 0];
num.Value = i;
num.Alignment = CellAlignment.MiddleCenter;
num.TextHeight = textHeight;
}
}
// Commit the transaction
tr.Commit();
}
}
[CommandMethod("CBT")]
static public void CreateBlockTable()
{
var doc = Application.DocumentManager.MdiActiveDocument;
if (doc == null)
return;
var db = doc.Database;
var ed = doc.Editor;
var pr = ed.GetPoint("\nEnter table insertion point");
if (pr.Status != PromptStatus.OK)
return;
using (var tr = doc.TransactionManager.StartTransaction())
{
var bt = (BlockTable)tr.GetObject(db.BlockTableId, OpenMode.ForRead);
// Create the table, set its style and default row/column size
var tb = new Table();
tb.TableStyle = db.Tablestyle;
tb.SetRowHeight(rowHeight);
tb.SetColumnWidth(colWidth);
tb.Position = pr.Value;
// Set the header cell
var head = tb.Cells[0, 0];
head.Value = "Blocks";
head.Alignment = CellAlignment.MiddleCenter;
head.TextHeight = textHeight;
// Insert an additional column
tb.InsertColumns(0, colWidth, 1);
// Loop through the blocks in the drawing, creating rows
foreach (var id in bt)
{
var btr = (BlockTableRecord)tr.GetObject(id, OpenMode.ForRead);
// Only care about user-insertable blocks
if (!btr.IsLayout && !btr.IsAnonymous)
{
// Add a row
tb.InsertRows(tb.Rows.Count, rowHeight, 1);
var rowIdx = tb.Rows.Count - 1;
// The first cell will hold the block name
var first = tb.Cells[rowIdx, 0];
first.Value = btr.Name;
first.Alignment = CellAlignment.MiddleCenter;
first.TextHeight = textHeight;
// The second will contain a thumbnail of the block
var second = tb.Cells[rowIdx, 1];
second.BlockTableRecordId = id;
}
}
// Now we add the table to the current space
var sp =
(BlockTableRecord)tr.GetObject(db.CurrentSpaceId, OpenMode.ForWrite);
sp.AppendEntity(tb);
// And to the transaction, which we then commit
tr.AddNewlyCreatedDBObject(tb, true);
tr.Commit();
}
}
}
}
Something to bear in mind: the size of the attribute text isn’t related to the text size of the cell. It’s driven by the size of the block when it fills the cell… which means that you’ll need to take this into account, in some way, when you generate your symbol and the table itself. You can get it to match reasonably well, but as soon as someone resizes the table then things will start to look odd. But the technique is interesting, nonetheless, and if you wanted to be really clever you could manipulate the size of the attribute programmatically based on the size of the cells in which you wanted to use it.
