Face tracking inside AutoCAD using Kinect

After discovering, earlier in the week, that version 1.5 of the Kinect SDK provides the capability to get a 3D mesh of a tracked face, I couldn’t resist seeing how to bring that into AutoCAD (both inside a jig and as database-resident geometry).

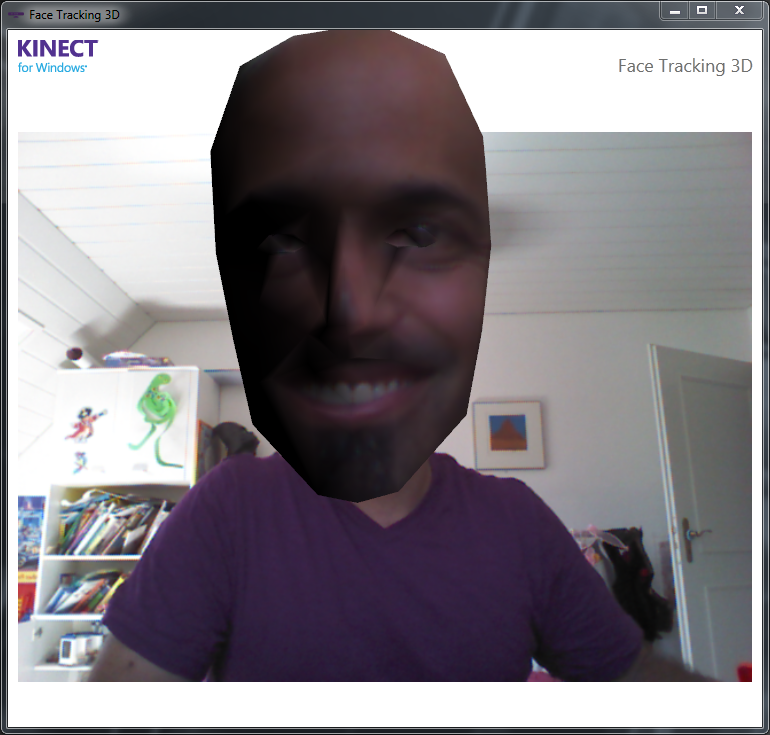

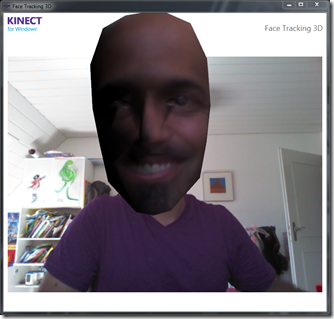

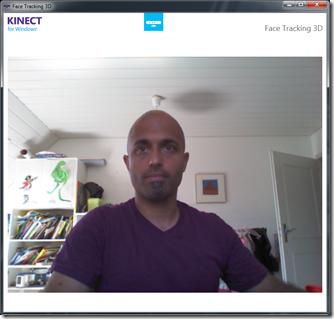

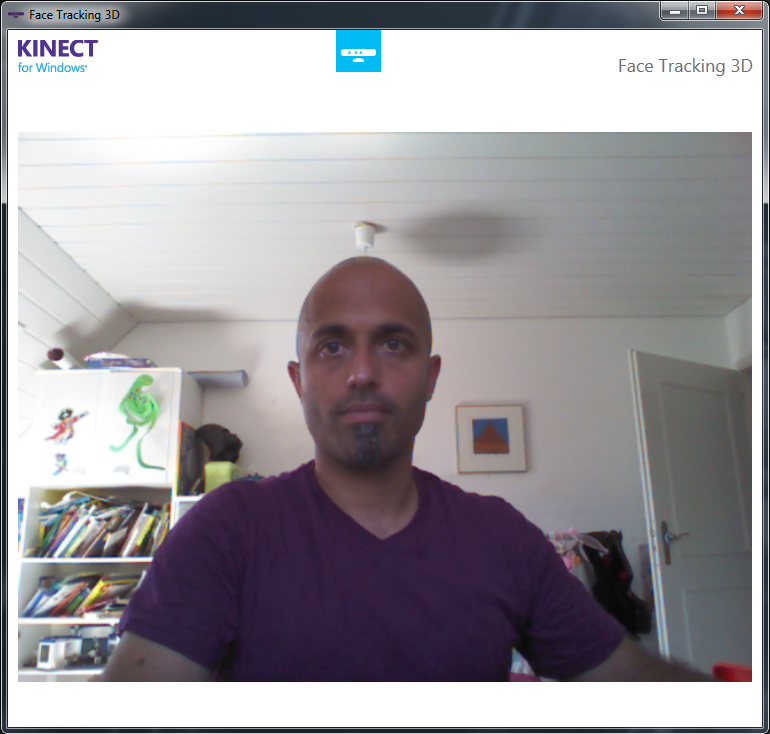

I started by checking out the pretty-cool FaceTracking3D sample, which gives you a feel for how Kinect tracks faces, super-imposing an exaggerated, textured mesh on top of your usual face in a WPF dialog:

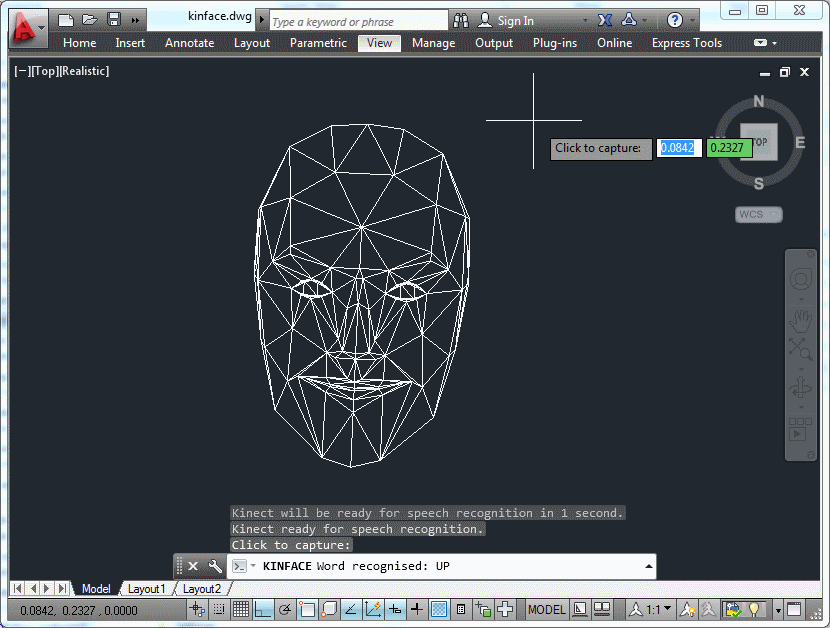

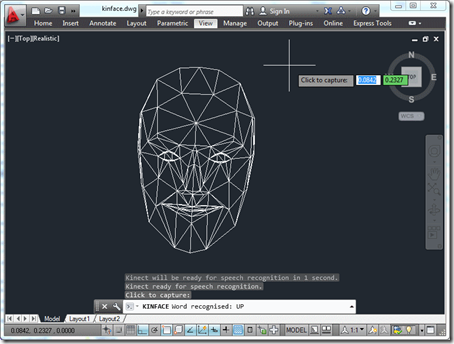

I decided to go for a more minimalist (which also happens to mean it’s simpler and with less scary results :-) approach for the AutoCAD integration: just to generate a wireframe view during a jig by drawing a series of polygons…

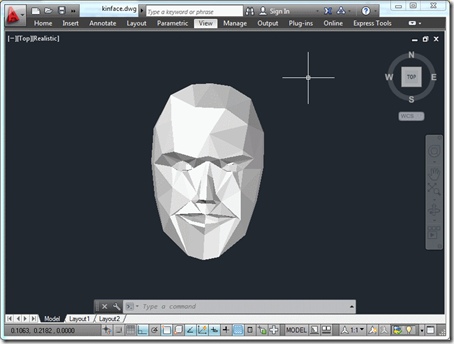

… and then create some database-resident 3D faces once we’re done:

Here’s the main C# code that does all this (although a few minor changes were needed in the base KinectJig class, to make certain members accessible – you can get the complete source here):

using Autodesk.AutoCAD.ApplicationServices;
using Autodesk.AutoCAD.EditorInput;
using Autodesk.AutoCAD.Geometry;
using Autodesk.AutoCAD.Runtime;
using Autodesk.AutoCAD.GraphicsInterface;
using Autodesk.AutoCAD.DatabaseServices;
using Microsoft.Kinect;
using Microsoft.Kinect.Toolkit.FaceTracking;
using System.Collections.Generic;
using System.Linq;

#pragma warning disable 1591

namespace KinectSamples
{
  // A simple, lightweight face definition class to be used
  // inside (and passed outside) the jig

  public class FaceDef
  {
    public FaceDef(Point3d first, Point3d second, Point3d third)
    {
      First = first;
      Second = second;
      Third = third;
    }

    public Point3d First { get; set; }
    public Point3d Second { get; set; }
    public Point3d Third { get; set; }
  }

  public class KinectFaceMeshJig : KinectJig
  {
    private FaceTracker _faceTracker;
    private bool _displayFaceMesh;
    private int _trackingId = -1;

    private FaceTriangle[] _triangleIndices;
    private Point3dCollection _points;

    private List<FaceDef> _faces;
    public List<FaceDef> Faces { get { return _faces; } }

    public KinectFaceMeshJig()
    {
      _displayFaceMesh = false;
    }

    public void UpdateMesh(FaceTrackFrame frame)
    {
      EnumIndexableCollection<FeaturePoint, Vector3DF> pts =
        frame.Get3DShape();

      if (_triangleIndices == null)
      {
        // The triangles definitions don't change from
        // frame to frame

        _triangleIndices = frame.GetTriangles();

        // We'll also create a dummy set of points
        // (as this also has a fixed size)

        _points = new Point3dCollection();

        for (int idx = 0; idx < pts.Count; idx++)
        {
          _points.Add(new Point3d());
        }
      }

      // Create or clear the list of face definitions

      if (_faces == null)
      {
        _faces = new List<FaceDef>();
      }
      else
      {
        _faces.Clear();
      }

      // Update the 3D model's vertices

      for (int idx = 0; idx < pts.Count; idx++)
      {
        Vector3DF point = pts[idx];
        _points[idx] = new Point3d(point.X, point.Y, -point.Z);
      }

      // Create a face definition for each triangle

      foreach (FaceTriangle triangle in _triangleIndices)
      {
        FaceDef face =
          new FaceDef(
            _points[triangle.First],
            _points[triangle.Second],
            _points[triangle.Third]
          );
        _faces.Add(face);
      }
    }

    protected override SamplerStatus SamplerData()
    {
      try
      {
        if (_faceTracker == null)
        {
          try
          {
            _faceTracker = new FaceTracker(_kinect);
          }
          catch (System.InvalidOperationException)
          {
            // During some shutdown scenarios the FaceTracker
            // is unable to be instantiated. Catch that exception
            // and don't track a face
            _faceTracker = null;
          }
        }

        if (
          _faceTracker != null &&
          _colorPixels != null &&
          _depthPixels != null &&
          _skeletons != null
        )
        {
          // Find a skeleton to track. First see if our old one
          // is good. When a skeleton is in PositionOnly tracking
          // state, don't pick a new one as it may become fully
          // tracked again

          Skeleton skeletonOfInterest =
            _skeletons.FirstOrDefault(
              skeleton =>
                skeleton.TrackingId == _trackingId &&
                skeleton.TrackingState !=
                  SkeletonTrackingState.NotTracked
            );

          if (skeletonOfInterest == null)
          {
            // The old one wasn't around. Find any skeleton that
            // is being tracked and use it

            skeletonOfInterest =
              _skeletons.FirstOrDefault(
                skeleton =>
                  skeleton.TrackingState ==
                    SkeletonTrackingState.Tracked
              );
          }

          // Call a different version of the function if we have
          // a tracked skeleton. We're also lazily hard-coding the
          // depth and image formats, for now (sorry!)

          FaceTrackFrame faceTrackFrame =
            (skeletonOfInterest == null ?
              _faceTracker.Track(
                ColorImageFormat.RgbResolution640x480Fps30,
                _colorPixels,
                DepthImageFormat.Resolution640x480Fps30,
                _depthPixels
              )
              :
              _faceTracker.Track(
                ColorImageFormat.RgbResolution640x480Fps30,
                _colorPixels,
                DepthImageFormat.Resolution640x480Fps30,
                _depthPixels,
                skeletonOfInterest
              )
            );

          if (faceTrackFrame.TrackSuccessful)
          {
            this.UpdateMesh(faceTrackFrame);

            // Only display face mesh if there was a successful track

            _displayFaceMesh = true;
          }
        }
      }
      catch (System.Exception ex)
      {
        Autodesk.AutoCAD.ApplicationServices.Application.
          DocumentManager.MdiActiveDocument.Editor.WriteMessage(
            "\nException: {0}", ex
          );
      }

      ForceMessage();

      return SamplerStatus.OK;
    }

    protected override bool WorldDrawData(WorldDraw draw)
    {
      if (_displayFaceMesh)
      {
        Point3dCollection pts = new Point3dCollection();
        pts.Add(new Point3d());
        pts.Add(new Point3d());
        pts.Add(new Point3d());

        foreach (FaceDef face in _faces)
        {
          pts[0] = face.First;
          pts[1] = face.Second;
          pts[2] = face.Third;
          draw.Geometry.Polygon(pts);
        }
      }

      return true;
    }
  }

  public class KinectFaceCommands
  {
    [CommandMethod("ADNPLUGINS", "KINFACE", CommandFlags.Modal)]
    public void ImportFaceFromKinect()
    {
      Document doc =
        Autodesk.AutoCAD.ApplicationServices.
          Application.DocumentManager.MdiActiveDocument;
      Editor ed = doc.Editor;

      KinectFaceMeshJig kj = new KinectFaceMeshJig();

      kj.InitializeSpeech();

      if (!kj.StartSensor())
      {
        ed.WriteMessage(
          "\nUnable to start Kinect sensor - " +
          "are you sure it's plugged in?"
        );
        return;
      }

      PromptResult pr = ed.Drag(kj);

      if (pr.Status != PromptStatus.OK && !kj.Finished)
      {
        kj.StopSensor();
        return;
      }

      kj.StopSensor();

      if (kj.Faces != null && kj.Faces.Count > 0)
      {
        Transaction tr =
          doc.TransactionManager.StartTransaction();
        using (tr)
        {
          var bt =
            (BlockTable)tr.GetObject(
              doc.Database.BlockTableId, OpenMode.ForRead
            );
          var btr =
            (BlockTableRecord)tr.GetObject(
              bt[BlockTableRecord.ModelSpace], OpenMode.ForWritea
            );

          // Create a 3D face for each definition

          foreach (var fd in kj.Faces)
          {
            Face face =
              new Face(
                fd.First, fd.Second, fd.Third,
                false, false, false, false
              );
            btr.AppendEntity(face);
            tr.AddNewlyCreatedDBObject(face, true);
          }
          tr.Commit();
        }
      }
    }
  }
}
