As we’re nearing the end of this series, it seems a good time to do a quick recap of where we’ve been with the posts leading up to this point. Here goes…
An interesting challenge: generating variable density fill patterns for 3D printing
Generating hyperbolic geometry on a Poincaré disk in AutoCAD using .NET
Generating hyperbolic tessellations inside AutoCAD using .NET
Scripting the generation of hyperbolic tessellations inside AutoCAD
Circle packing in AutoCAD: creating an Apollonian gasket using .NET
Circle packing in AutoCAD: creating an Apollonian gasket using F# – Part 1
Circle packing in AutoCAD: creating an Apollonian gasket using F# – Part 2
Sphere packing in AutoCAD: creating an Apollonian packing using F# – Part 1
Sphere packing in AutoCAD: creating an Apollonian packing using F# – Part 2
Sphere packing in AutoCAD: creating an Apollonian packing using F# – Part 3
Until now, the focus on the series has largely been around relatively pure mathematical approaches to fill simple (in our case circular or spherical) areas/volumes: we’ve so far avoided having to adapt the filling/packing algorithm depending on the form selected.
Today’s post changes that: it uses a very different approach to fill a selected Solid3d with spheres. A bit like the “hyperbolic tessellation” patterns we saw, early on, we want to create smaller spheres at the surface of the solid, with the radius gradually increasing, layer upon layer, as we get towards the centre.

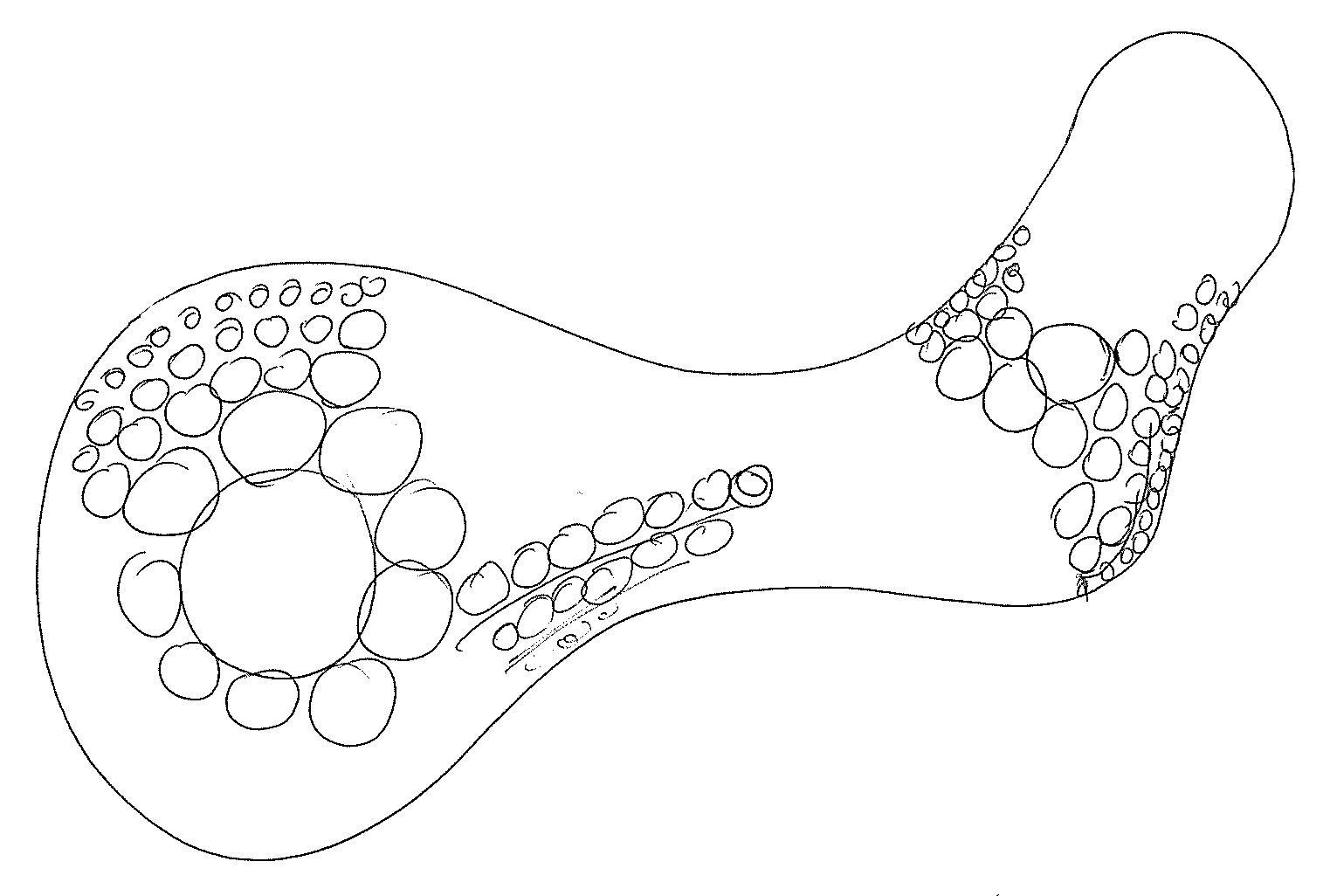

Something like this sketch, created by my colleague Francesco Tonioni (as mentioned in the previous post) as we brainstormed optimal filling strategies (from a strength – rather than material – perspective):
To do this for an arbitrary solid, we’re using this basic approach:
- Section a solid along an appropriate plane (one that’s defined by two user-selected points and the view direction) and create a ring of (initially very small) spheres along the resultant curve.
- Move the points along in one direction (normal to the plane) by the diameter of the sphere. Repeat step 1 (and then 2) until you run out of solid to section.
- Starting from the initially-created section, move the points in the other direction repeating the process until you hit the other end of the solid.
- Now that you’ve got a complete layer of spheres at the surface of the solid, offset the solid by the diameter of the spheres and start again with a slightly larger sphere diameter.
There are a host of devils in the detail, of course: to reduce the chances of any of the outer layer of spheres intersecting the surface of the solid, we need to know the curvature of the surface at a particular point (and while we get that right for relatively uniform surfaces, I’ll bet it’ll fail for highly irregular ones), which allows us to adjust the depth of the sphere at that point to make sure it fits.

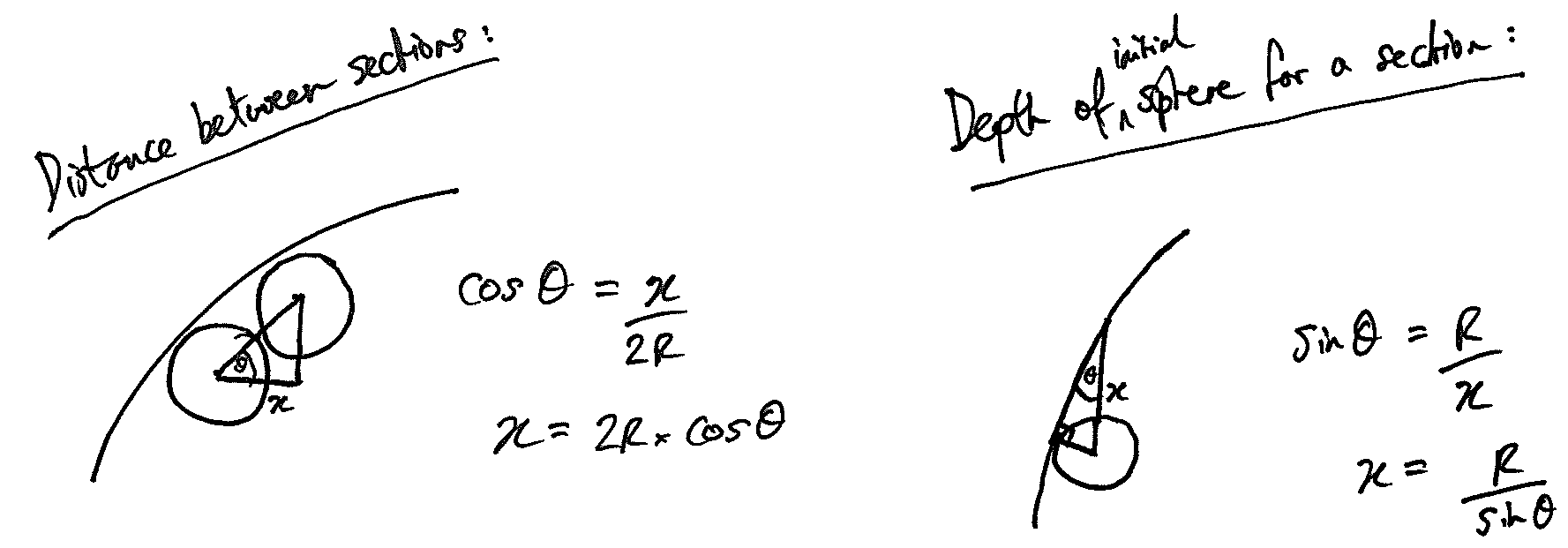

In fact, here are the back-of-the-envelope sketches I drew to work out some of the trigonometry needed to find out how adjacent rings of spheres should be positioned:
These calculations are far from foolproof, so we iterate adjusting the values to see if we can get a better fit. Once again, this probably works well with solids with a uniform shape along the direction of our slices (the normal to the section vector) – so rotations, etc., can work very well, but I’d expect less uniform shapes to cause problems.
Here’s the C# code, also contained in the project with the various code files for this series. I ended up using C# for this post, as it had a lot to do with accessing and managing AutoCAD geometry: the times I’ve used F# of late have been when I’ve had more “pure” calculations to perform. There’s no strict need for this division, but I do like having a split between core algorithms and AutoCAD-specific code. And while it might seem a bit artificial to use a language barrier to enforce it, it does feel like it plays to the strengths of the respective languages.
using Autodesk.AutoCAD.ApplicationServices;
using Autodesk.AutoCAD.DatabaseServices;
using Autodesk.AutoCAD.EditorInput;
using Autodesk.AutoCAD.Geometry;
using Autodesk.AutoCAD.Runtime;
using System;
namespace SpherePacking
{
public class PackingCommands
{
[CommandMethod("PACKSPHERES")]
static public void PackSolidWithSpheres()
{
Document doc =
Application.DocumentManager.MdiActiveDocument;
Database db = doc.Database;
Editor ed = doc.Editor;
// We need a solid
PromptEntityOptions peo =
new PromptEntityOptions("\nSelect solid to fill");
peo.SetRejectMessage("\nMust be a Solid3d.");
peo.AddAllowedClass(typeof(Solid3d), false);
PromptEntityResult per = ed.GetEntity(peo);
if (per.Status != PromptStatus.OK)
return;
ObjectId solId = per.ObjectId;
// And an initial section plane
// (the view direction is used to define the third point)
PromptPointOptions ppo =
new PromptPointOptions(
"\nSelect first point for initial section plane"
);
PromptPointResult ppr = ed.GetPoint(ppo);
if (ppr.Status != PromptStatus.OK)
return;
Point3d first = ppr.Value;
ppo.Message =
"\nSelect second point for initial section plane";
ppo.BasePoint = first;
ppo.UseBasePoint = true;
ppo.UseDashedLine = true;
ppr = ed.GetPoint(ppo);
if (ppr.Status != PromptStatus.OK)
return;
Point3d second = ppr.Value;
// We either generate spheres or subtract them from the
// selected solid
PromptKeywordOptions pko =
new PromptKeywordOptions(
"\nSubtract spheres from original?"
);
pko.AllowNone = true;
pko.Keywords.Add("Yes");
pko.Keywords.Add("No");
pko.Keywords.Default = "No";
PromptResult pkr = ed.GetKeywords(pko);
if (pkr.Status != PromptStatus.OK)
return;
bool subtract = (pkr.StringResult == "Yes");
// We need a transaction
Transaction tr =
db.TransactionManager.StartTransaction();
using (tr)
{
// And we also need the modelspace open for write
BlockTable bt =
(BlockTable)tr.GetObject(
db.BlockTableId,
OpenMode.ForRead,
false
);
BlockTableRecord btr =
(BlockTableRecord)tr.GetObject(
bt[BlockTableRecord.ModelSpace],
OpenMode.ForWrite,
false
);
// Get the view direction
ViewportTableRecord vtr =
(ViewportTableRecord)tr.GetObject(
ed.ActiveViewportId, OpenMode.ForRead
);
Vector3d viewDir = vtr.ViewDirection;
// Open the selected solid for write
Solid3d outer =
tr.GetObject(solId, OpenMode.ForWrite) as Solid3d;
bool cancelled = false;
if (outer != null)
{
try
{
// Create our sphere packer and use it to fill the
// selected solid with spheres
SpherePacker sp =
new SpherePacker(
db, tr, btr, outer, first, second, viewDir, subtract
);
sp.FillWithSpheres();
}
catch
{
cancelled = true;
}
}
if (!cancelled)
tr.Commit();
}
}
}
public class SpherePacker
{
Database _db = null;
Transaction _tr = null;
BlockTableRecord _btr = null;
Solid3d _parent = null, _sol = null;
Point3d _first, _second;
Vector3d _viewDir;
bool _sub = false;
ProgressMeter _pm = null;
// Constructor
public SpherePacker(
Database db, Transaction tr, BlockTableRecord btr,
Solid3d parent, Point3d first, Point3d second,
Vector3d viewDir, bool subtract
)
{
// Set the member data from the arguments
_db = db;
_tr = tr;
_btr = btr;
_parent = parent;
_sub = subtract;
_first = first;
_second = second;
_viewDir = viewDir;
// Make a copy of our outer solid, which we will
// repeatedly shrink for each layer of spheres
_sol = new Solid3d();
_sol.CopyFrom(_parent);
// Add it to the drawing
AddToDrawing(_sol);
// Make sure we have target layers in place for each layer
// of spheres
CreateLayers();
}
// Get the name for a layer based on its integer level
// (a very simple function, but nice to have it centralised
// in case we want to do things differently)
private string GetLayer(int layer)
{
return layer.ToString();
}
// Create a set of layers for our spheres
internal void CreateLayers()
{
// Open the layer table for write
LayerTable lt =
(LayerTable)_tr.GetObject(
_db.LayerTableId, OpenMode.ForWrite
);
// Loop through, creating 10 layers
for (short i = 1; i <= 10; i++)
{
string name = GetLayer(i);
if (!lt.Has(name))
{
LayerTableRecord ltr = new LayerTableRecord();
ltr.Color =
Autodesk.AutoCAD.Colors.Color.FromColorIndex(
Autodesk.AutoCAD.Colors.ColorMethod.ByAci, i
);
ltr.Name = name;
lt.Add(ltr);
_tr.AddNewlyCreatedDBObject(ltr, true);
}
}
}
// Our main method
internal void FillWithSpheres()
{
// Create and start a progress meter (the limit is slightly
// arbitrary - it works well for spheres, but is likely to
// work less well for other forms)
_pm = new ProgressMeter();
_pm.SetLimit(180);
_pm.Start(
_sub ?
"Subtracting spheres from selected solid" :
"Filling solid with spheres"
);
try
{
// Start with layer 1 and a radius of 0.2 (which should
// get overwritten immediately of the solid has valid
// extents)
int layer = 1;
double radius = 0.2;
if (_sol.Bounds.HasValue)
{
// Set the radius relative to the solid's extents
Extents3d ext = _sol.Bounds.Value;
Vector3d vec = ext.MaxPoint - ext.MinPoint;
double mag = vec.Length;
radius = mag / 150;
}
// Shrink the body by half the radius of the first layer,
// just to give us a little gap between the spheres
// and the outer solid
_sol.OffsetBody(-0.5 * radius);
// Create layers of spheres, starting with the initial
// radius value and multiplying by a factor for each
// new layer
for (double r = radius; r < radius * 20; r *= 1.3)
{
GenerateSectionsAcrossSolid(r, layer++);
// Shrink the body by the diameter of the layer's spheres
try
{
_sol.OffsetBody(-2 * r);
}
catch
{
break;
}
// We won't attempt to fill volumes that aren't large
// enough (we check the radius against the volume)
if (_sol.MassProperties.Volume < 350 * r)
break;
}
// Set our shrinking solid to be the next level down
// (via its layer)
_sol.Layer = GetLayer(layer);
// If subtracting, do so for this remaining solid
if (_sub)
{
_parent.BooleanOperation(
BooleanOperationType.BoolSubtract, _sol
);
}
}
catch
{
// Rethrow any exception, letting is get caught in our
// command and dealt with there
throw;
}
finally
{
// Make sure we stop our progress meter
_pm.Stop();
}
}
// Generate a layer of spheres across the complete solid
internal void GenerateSectionsAcrossSolid(
double radius, int layer
)
{
// Use a coordinate system object to work out the direction
// vector for us to move the section plane
// (should be perpendicular to the section plane, basically)
CoordinateSystem3d cs =
new CoordinateSystem3d(
Point3d.Origin, _viewDir, _second - _first
);
Vector3d unitVec = cs.Zaxis / cs.Zaxis.Length;
// Local variables that get adjusted by each call to our
// GenerateSpheresAlongSection method
Point3d pt1 = _first,
pt2 = _second,
prevCen = Point3d.Origin;
Curve prevCur = null;
double prevDep = 0.0;
// Create a ring of spheres around our initial section curve
GenerateSpheresAlongSection(
ref pt1, ref pt2, ref prevCen, ref prevCur, ref prevDep,
unitVec, radius, 0, layer
);
if (prevCur != null)
prevCur.Dispose();
prevCur = null;
bool done = false;
Point3d initCen = prevCen;
double initDep = prevDep;
// Now go all the way across in one direction
do
{
done =
!GenerateSpheresAlongSection(
ref pt1, ref pt2, ref prevCen, ref prevCur, ref prevDep,
unitVec, radius, 1, layer
);
}
while (!done);
if (prevCur != null)
prevCur.Dispose();
prevCur = null;
// And then go all the way in the other direction
pt1 = _first;
pt2 = _second;
prevCen = initCen;
prevDep = initDep;
do
{
done =
!GenerateSpheresAlongSection(
ref pt1, ref pt2, ref prevCen, ref prevCur, ref prevDep,
unitVec, radius, -1, layer
);
}
while (!done);
if (prevCur != null)
prevCur.Dispose();
}
// Generate a ring of spheres along a single section
private bool GenerateSpheresAlongSection(
ref Point3d pt1, ref Point3d pt2, ref Point3d prevCen,
ref Curve prevCur, ref double prevDep,
Vector3d unitVec, double radius,
int direction, int layer
)
{
// Tick our progress meter and check for user break
_pm.MeterProgress();
System.Windows.Forms.Application.DoEvents();
if (HostApplicationServices.Current.UserBreak())
{
if (prevCur != null)
prevCur.Dispose();
throw new System.Exception("User break");
}
// Take local copies of the points defining the section
Point3d first = pt1, second = pt2;
// Approximate the distance from the outer curve for the first
// pass. Set some limits for our target distance from the last
// curve
double bestDist = radius,
bestDepth = radius,
upperDistLimit = 2.1 * radius,
lowerDistLimit = 2 * radius;
// We'll count the number of iterations
int tries = 0;
bool res = true;
Curve cur = null;
do
{
// If we're creating ring in a direction along the surface,
// we need to transform the points defining the section
if (direction != 0)
{
Matrix3d disp =
Matrix3d.Displacement(direction * unitVec * bestDist);
pt1 = pt1.TransformBy(disp);
pt2 = pt2.TransformBy(disp);
}
// Get the curve from this section
cur = CurveFromSection(pt1, pt2);
if (cur == null)
{
FillRemainingCurve(prevCur, radius, prevDep, layer);
res = false;
break;
}
// Get the distance between the proposed position of the
// first sphere and the first sphere of the previous ring
Point3d cen = GetFirstCenter(cur, bestDepth);
double center2center = (cen - prevCen).Length;
// If this is either the first time run (i.e. no previous
// sphere) or the spheres are at an acceptable distance,
// skip the trigonometric calculations
if (
prevCen.DistanceTo(Point3d.Origin) >
Tolerance.Global.EqualPoint &&
(center2center < lowerDistLimit ||
center2center > upperDistLimit)
)
{
// Only do the calculations if this is the first run,
// otherwise we will just adjust the values
if (tries == 0)
{
// Calculate the distance to the next section
// Get slope at the current point on the surface
// (ideal would be to get the tangent at the mid-
// point of the spheres, but we have to approximate)
Vector3d slope =
GetSlopeAtPoint(pt1, pt2, unitVec, radius);
if (slope.Length < Tolerance.Global.EqualPoint)
{
res = false;
break;
}
// Get the "down" vector based on the curve direction
Vector3d down =
cur.GetPointAtParameter(cur.EndParam / 2) -
cur.GetPointAtParameter(cur.StartParam);
// Get the viewing plane
using (Plane p = new Plane(Point3d.Origin, _viewDir))
{
// Project the various vectors onto the plane
Vector2d unit2d = unitVec.Convert2d(p),
slope2d = slope.Convert2d(p),
down2d = down.Convert2d(p);
// Get the angle of the slope to the offset direction
double theta = unit2d.GetAngleTo(slope2d);
// Get the angle of the slope to the down direction
double theta2 = down2d.GetAngleTo(slope2d);
// Calculate the distance and the depth
bestDist = Math.Abs(2 * radius * Math.Cos(theta));
bestDepth = Math.Abs(radius / Math.Sin(theta2));
}
}
else
{
// Incrementally adjust the distance upwards or
// downwards, depending on which side of ideal we are
if (center2center < lowerDistLimit)
bestDist *= 1.05;
else if (center2center > upperDistLimit)
bestDist *= 0.95;
}
// Reset the points, so that we start from scratch
// but with (hopefully) a better distance value
pt1 = first;
pt2 = second;
tries++;
// Max out at 20 iterations (gives much better coverage
// than 10)
if (tries > 20)
{
double curLen =
cur.GetDistanceAtParameter(cur.EndParam);
double prevLen =
prevCur.GetDistanceAtParameter(prevCur.EndParam);
// Only fill previous curves when the current one
// is much shorter than the previous one
if (curLen < prevLen / 4)
FillRemainingCurve(prevCur, radius, prevDep, layer);
res = false;
break;
}
}
else
{
// We have spheres at an acceptable distance from
// each other (or this is the first one)
prevCen = cen;
GenerateSpheresAlongCurve(
cur, radius, bestDepth, layer
);
res = true;
break;
}
}
while (true);
if (prevCur != null)
prevCur.Dispose();
prevCur = cur;
return res;
}
private void FillRemainingCurve(
Curve cur, double radius, double initDepth, int layer
)
{
Curve inner = null;
try
{
inner =
(initDepth == 0.0 ? cur : GetInnerCurve(cur, initDepth));
if (inner == null)
return;
// Fill the remaining space as best we can
double inc = 2 * radius,
depth = inc;
bool done = false;
while (!done)
{
done =
!GenerateSpheresAlongCurve(
inner, radius, depth, layer
);
depth += inc;
}
}
catch { }
finally
{
if (inner != null && initDepth > 0.0)
inner.Dispose();
}
}
// Return the slope of the solid's surface at a particular
// section location
private Vector3d GetSlopeAtPoint(
Point3d pt1, Point3d pt2, Vector3d unitVec, double radius
)
{
// To get the slope of the surface at the point we care
// about, we'll take a section either side of the
// point - using 5% of the radius as the distance in
// each direction
const double factor = 0.05;
// Transform the points defining our section line in one
// direction
Matrix3d disp =
Matrix3d.Displacement(radius * factor * unitVec);
Point3d pt11 = pt1.TransformBy(disp);
Point3d pt12 = pt2.TransformBy(disp);
// And then the other direction
disp = Matrix3d.Displacement(-radius * factor * unitVec);
Point3d pt21 = pt1.TransformBy(disp);
Point3d pt22 = pt2.TransformBy(disp);
// Get the defining curves of these two sections
Curve c1 = CurveFromSection(pt11, pt12);
Curve c2 = CurveFromSection(pt21, pt22);
// Assume their start points are at the same relative point
if (c1 != null && c2 != null)
{
// Return the angle between the two
return c1.StartPoint - c2.StartPoint;
}
return new Vector3d(0, 0, 0);
}
private Curve CurveFromSection(Point3d pt1, Point3d pt2)
{
// Make a collection from our defining points
Point3dCollection pts =
new Point3dCollection(new Point3d[2] { pt1, pt2 });
// Declare the arrays for our results
Array fillEnts, bgEnts, fgEnts, fTangEnts, cTangEnts;
// Create the section and generate the geometry
using (Section sec = new Section(pts, _viewDir))
{
sec.GenerateSectionGeometry(
_sol, out fillEnts, out bgEnts,
out fgEnts, out fTangEnts, out cTangEnts
);
// We only care about the fillEnts - dispose of the rest
foreach (Entity e in bgEnts)
e.Dispose();
foreach (Entity e in fTangEnts)
e.Dispose();
foreach (Entity e in cTangEnts)
e.Dispose();
if (fillEnts.Length == 0)
return null;
// Return the first curve, dispose of any remaining
Curve c = fillEnts.GetValue(0) as Curve;
for (int i = 1; i < fillEnts.Length; i++)
{
DBObject o = fillEnts.GetValue(i) as DBObject;
if (o != null)
o.Dispose();
}
return c;
}
}
// Get an inner curve offset at a certain depth
private static Curve GetInnerCurve(Curve c, double depth)
{
try
{
// We only return a single curve, if there is one.
// If there are more, we return null
DBObjectCollection inners = c.GetOffsetCurves(-depth);
if (inners.Count == 1)
return inners[0] as Curve;
foreach (DBObject o in inners)
o.Dispose();
}
catch { }
return null;
}
// Return the center of the 1st sphere to be placed on a curve
private static Point3d GetFirstCenter(Curve c, double radius)
{
// Only handle closed curves
if (c.Closed)
{
// Get the inner curve at the depth of the radius
using (Curve inner = GetInnerCurve(c, radius))
{
// Return the start point of the curve (which we assume
// will be at a consistent point across the various
// section profiles)
if (inner != null)
return inner.StartPoint;
}
}
return Point3d.Origin;
}
// Generate adjacent spheres along a curve
private bool GenerateSpheresAlongCurve(
Curve curve, double radius, double depth, int layer
)
{
// Only deal with closed curves
if (!curve.Closed)
return false;
try
{
// Get the inner curve at a certain depth
using (Curve inner = GetInnerCurve(curve, depth))
{
// Return null if we didn't get a curve or if it's too
// short to realistically fill with spheres
if (
inner == null ||
inner.GetDistanceAtParameter(inner.EndParam) <
8.85 * radius
)
{
if (inner != null)
{
// For shorter curves we'll create one last
// sphere at the center of the curve, assuming
// it's a circle or an ellipse (spheres
// generally generate ellipse section curves,
// it seems)
if (inner is Ellipse || inner is Circle)
{
Point3d lastCen =
(inner is Ellipse ?
((Ellipse)inner).Center :
((Circle)inner).Center);
CreateSphereAtPoint(lastCen, radius, layer);
}
}
return false;
}
// Get the curve's plane
Plane p = inner.GetPlane();
// Get the center of the first sphere (the curve's start
// point) and make a local copy of it
Point3d cen = inner.StartPoint,
initial = cen;
// We'll step along the curve parametrically
double curParam = inner.StartParam;
// A flag to indication completion
bool done = false;
// We'll loop until we can't create more spheres
while (!done)
{
// Create a circle at the first location
CreateSphereAtPoint(cen, radius, layer);
// Get the center of the next sphere: cen and curParam
// will get updated, and lastRadius will only get set
// in the case where there's only space to create a
// smaller sphere
double lastRadius;
done =
!GetNextSphereCenter(
inner, p, radius, initial, ref cen, ref curParam,
out lastRadius
);
// If we're at the end of the ring, create the last
// sphere
if (done && lastRadius > 0.0)
CreateSphereAtPoint(cen, lastRadius, layer);
}
return true;
}
}
catch
{
return false;
}
}
// Get the next sphere's center along the ring
private bool GetNextSphereCenter(
Curve curve, Plane p, double radius, Point3d initial,
ref Point3d cen, ref double curParam, out double lastRadius
)
{
// We may not return a lastRadius, so default to 0
lastRadius = 0.0;
// Make a local copy of the previous sphere's center
Point3d prevCen = cen;
// We're going to use a circle on the plane of the curve
// to find the center of our next sphere
using (Circle c = new Circle(cen, p.Normal, 2 * radius))
{
// The first - at the previous sphere's center - gets
// intersected with the curve
Point3dCollection pts = new Point3dCollection();
curve.IntersectWith(
c, Intersect.OnBothOperands, pts,
IntPtr.Zero, IntPtr.Zero
);
// For each of the intersection points, we get the parameter
foreach (Point3d pt in pts)
{
double param = curve.GetParameterAtPoint(pt);
// If the point's parameter is greater than the current
// one, we'll use it
if (param > curParam)
{
double distFromInitial = (pt - initial).Length;
if (distFromInitial >= (2 * radius * 0.98))
{
cen = pt;
curParam = param;
return true;
}
else
{
// Fill the gap at the end of a ring by reducing
// the radius and adjusting the center to be the
// mid-point on the curve between the first and
// the previous spheres' centers
curParam =
curParam + ((curve.EndParam - curParam) / 2);
cen = curve.GetPointAtParameter(curParam);
double distFromInitial2 = (cen - initial).Length;
lastRadius = distFromInitial2 - radius;
return false;
}
}
break;
}
}
return false;
}
// Create a sphere at the given point
private void CreateSphereAtPoint(
Point3d cen, double radius, int layer
)
{
// Just make sure the center isn't at the origin (which
// we've naughtily been using to denote an error) and
// that the radius is greater than zero
if (
cen.DistanceTo(Point3d.Origin) > Tolerance.Global.EqualPoint
&& radius > Tolerance.Global.EqualPoint
)
{
// Create and position our sphere
Solid3d sol = new Solid3d();
// If we're subtracting, make the sphere 2% smaller, so
// they don't touch each other
sol.CreateSphere(_sub ? radius * 0.98 : radius);
// Move the sphere to the desired location
Matrix3d disp = Matrix3d.Displacement(cen - Point3d.Origin);
sol.TransformBy(disp);
// Set its layer
sol.Layer = GetLayer(layer);
// Add it to the modelspace and the transaction
AddToDrawing(sol);
// If we're subtracting from the outer solid, do so
if (_sub)
{
_parent.BooleanOperation(
BooleanOperationType.BoolSubtract, sol
);
}
}
}
// Add an entity to the open block table record and the
// current transaction
private void AddToDrawing(Entity ent)
{
_btr.AppendEntity(ent);
_tr.AddNewlyCreatedDBObject(ent, true);
}
}
}
Let’s see what we get when we run the PACKSPHERES command selecting a sphere and a section line right through the middle.

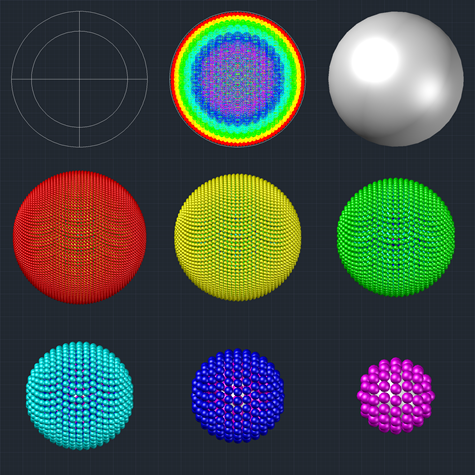

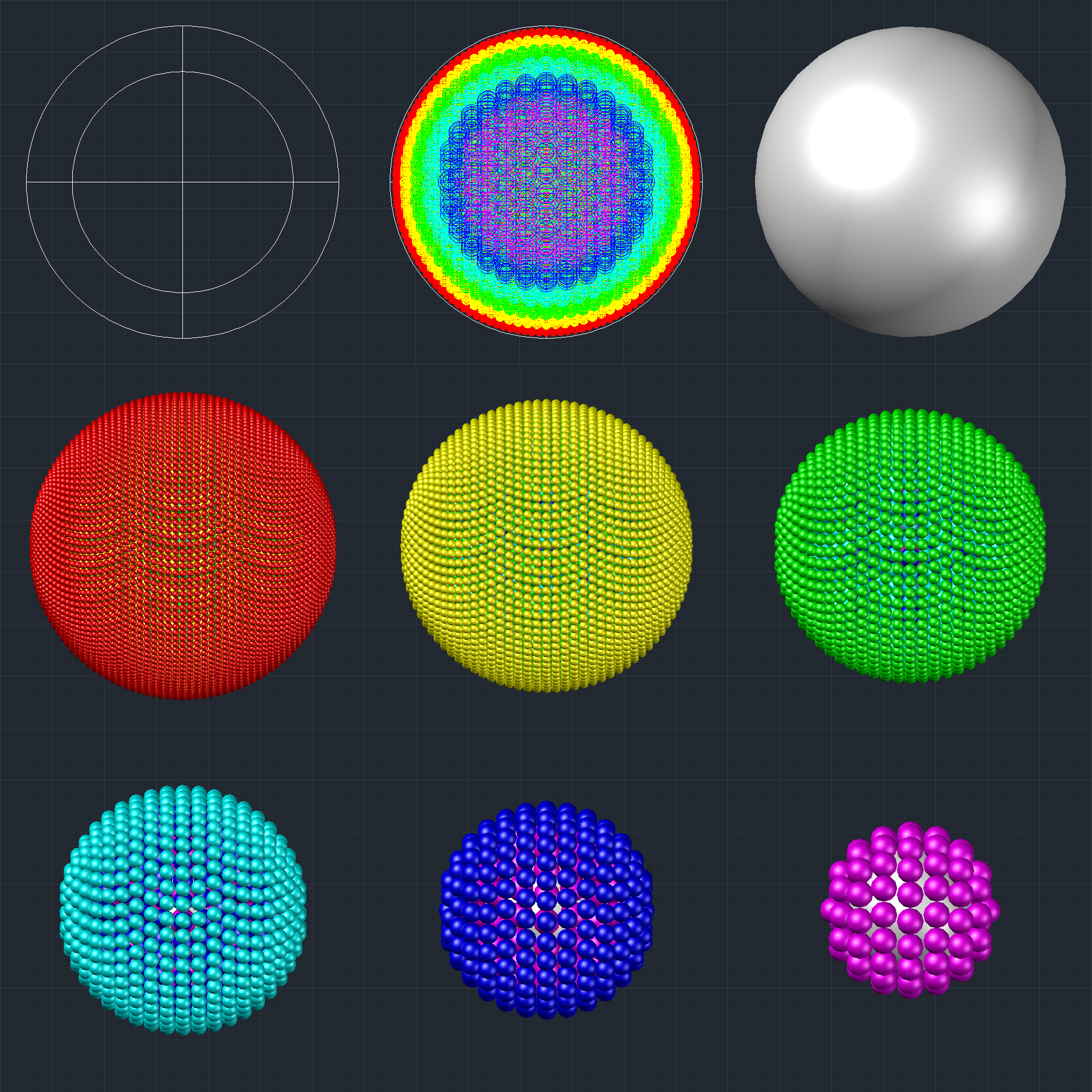

At the top-left of the below image is the wireframe view of the sphere prior to packing, top-middle is the packed sphere, also in wireframe (and prior to graphics regeneration, which would lead to the inner layers not showing as well), and the subsequent shots are of the various layers of the solid in realistic view (one more layer of the onion is peeled off in each shot).
I didn’t bother hiding the last layer, as we can – in any case – see the inner solid and I prefer the symmetry of the below image as it stands. The inner solid is the one we have been using to generate each layer, and has been created by iterative offsets from the original sphere: by design we choose to stop the process - leaving the inner body – when the radius of the spheres we would be creating would be relatively too large to create a useful layer.

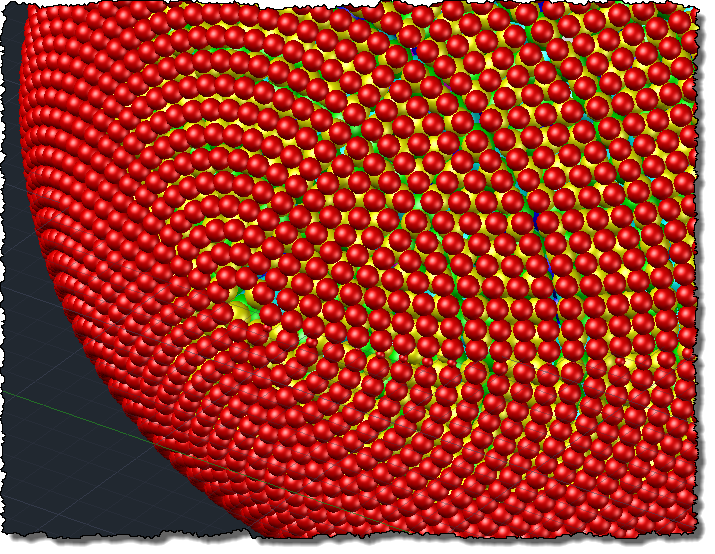

If you look at the model from a different angle, you’ll see some quirks: the poles have some gaps, for instance, and as spheres of a particular radius are not guaranteed to fill a ring completely, we fill the remainder with smaller spheres, where needed.
There are alternative approaches which would avoid this “fault line” of small spheres: we could adjust the radius of the spheres very slightly to make sure they are even over the length of the curve, or we could rotate the whole curve by a random amount. Each approach ultimately has advantages and disadvantages, so I’ve left it as is for this initial implementation.

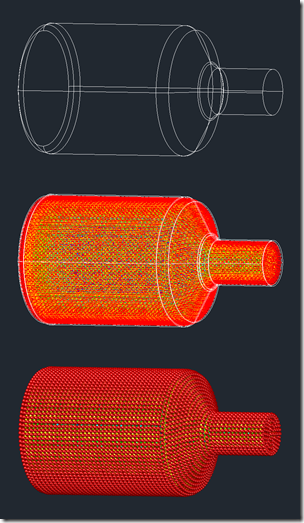

One benefit of an approach that takes sections across the length of a solid is that it can pack different forms full of spheres, too. For instance, here’s a bottle:

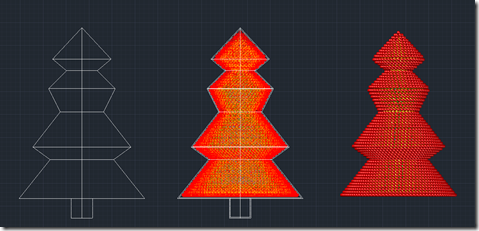

And here’s a tree-like form (the algorithm needs some work to deal with sudden changes in size of the section curve, such as when we go from the lower part of the “leafy part” to the trunk):
The PACKSPHERES command does have an option we haven’t looked at in this post, which is to automatically subtract the inner spheres from the outer solid. This can take a long time to work, but generates results that are quite like those in the last post (where we performed more-or-less the same process manually).

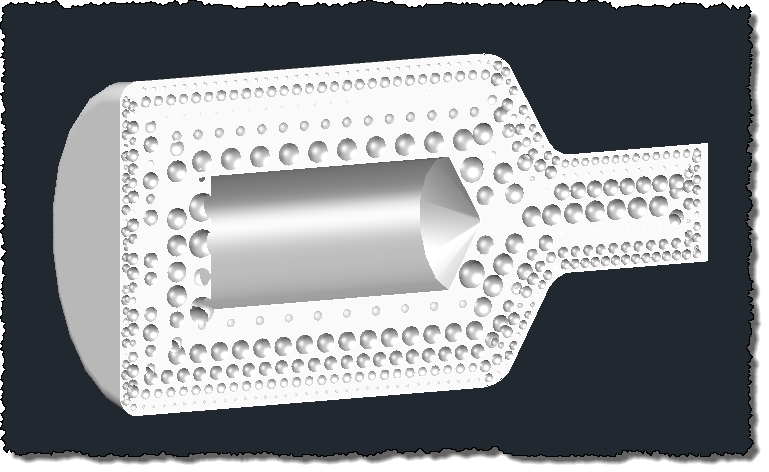

Here’s a section view of the resultant hollowed bottle when that option is selected (the size of the individual holes clearly depends on where the spheres happen to be relative to the section plane):
AutoCAD’s STLOUT command generated a 257 MB STL file for the above solid. Thanks to Alex Fielder for suggesting netfabb as a tool for viewing STL files (with the caveat that he hadn’t tested it on files quite that large): while netfabb Studio Basic managed to load the file, it unfortunately had difficulty slicing it.
But anyway – until someone invents a way to 3D print enclosed, hollow spheres without needing support material (perhaps microgravity fabs in lunar orbit would help – which is actually less sci-fi than you might think :-), this remains an intellectual – albeit entertaining (for me, at least) – exercise.
Next week we’re going to have a change of pace: as the news about AutoCAD 2013 is starting to hit the web, I’ll spend the week talking about the coming developer-oriented features in the 2013 release of AutoCAD.
