Flashing messages to the screen from AutoCAD using .NET

The implementation in this recent post to display a “Help!” message to the screen was well received by the person requesting it, but they ended up also wanting a command to display a message in the case that the user has help to offer other members of the class.

Which basically meant a great opportunity to refactor the previous implementation, so that it could be used more generally. :-)

Here’s the updated C# code which now implements a generalised “flash message” capability that is used by both the original HELPME and the new HELPYOU commands:

using Autodesk.AutoCAD.ApplicationServices;
using Autodesk.AutoCAD.Runtime;
using System.Drawing;
using System.Windows.Forms;
using System;

namespace GetAttention
{
  public class HelpForm : Form
  {
    // Percentage of screen height for border

    const int bdrPrc = 20;

    string _message = "";
    Brush _brush = null;

    public HelpForm(Brush brush, string message)
    {
      _brush = brush;
      _message = message;

      TopMost = true;
      ShowInTaskbar = false;
      FormBorderStyle = FormBorderStyle.None;
      BackColor = Color.Plum;
      TransparencyKey = Color.Plum;
      Width = Screen.PrimaryScreen.Bounds.Width;
      Height = Screen.PrimaryScreen.Bounds.Height;

      Paint += new PaintEventHandler(HelpForm_Paint);
    }

    void HelpForm_Paint(object sender, PaintEventArgs e)
    {
      // Calculate the actual border size in pixels

      int bdrWid = Height * bdrPrc / 100;

      // Our border will be around the whole screen

      Rectangle border = new Rectangle(0, 0, Width, Height);

      // Draw the border

      e.Graphics.DrawRectangle(new Pen(_brush, bdrWid), border);

      // Our text will be centered in the border

      System.Drawing.Font f = new Font("Arial", bdrWid);

      SizeF sz = e.Graphics.MeasureString(_message, f);
      int wid = (int)sz.Width;
      int hgt = (int)sz.Height;
      Rectangle rect =
        new Rectangle(
          (Width - wid) / 2, (Height - hgt) / 2,
          (int)(wid * 1.2), hgt
        );
      e.Graphics.DrawString(_message, f, _brush, rect);
    }
  }

  public class MessageFlasher
  {
    private static HelpForm _form = null;
    private static Timer _timer = null;
    private static int _times = 0;
    private static int _maxTimes = 0;

    public static void FlashMessage(
      Brush brush, string message, int times, double secs
    )
    {
      // Create our form

      _form = new HelpForm(brush, message);
      _form.Show();

      // Start the timer, ticking as per the specified interval

      _maxTimes = (times * 2) - 1;
      _timer = new Timer()
      {
        Interval = (int)(secs * 1000),
        Enabled = true
      };

      _timer.Tick +=
        (s, e) =>
        {
          // Once the timer has ticked n times (and the form
          // displayed n/2 times), dispose of the form

          if (_times++ >= _maxTimes)
          {
            _form.Hide();
            _form.Dispose();
            _form = null;

            _timer.Stop();
            _timer.Dispose();
            _timer = null;

            _times = 0;
          }
          else
          {
            // If we haven't reached ten ticks, toggle the form's
            // display on/off

            if (_form.Visible)
              _form.Hide();
            else
              _form.Show();
          }
        };
    }

    public class Commands
    {
      [CommandMethod("HELPME")]
      public void RequestHelp()
      {
        MessageFlasher.FlashMessage(Brushes.Red, "Help!", 5, 1);
      }

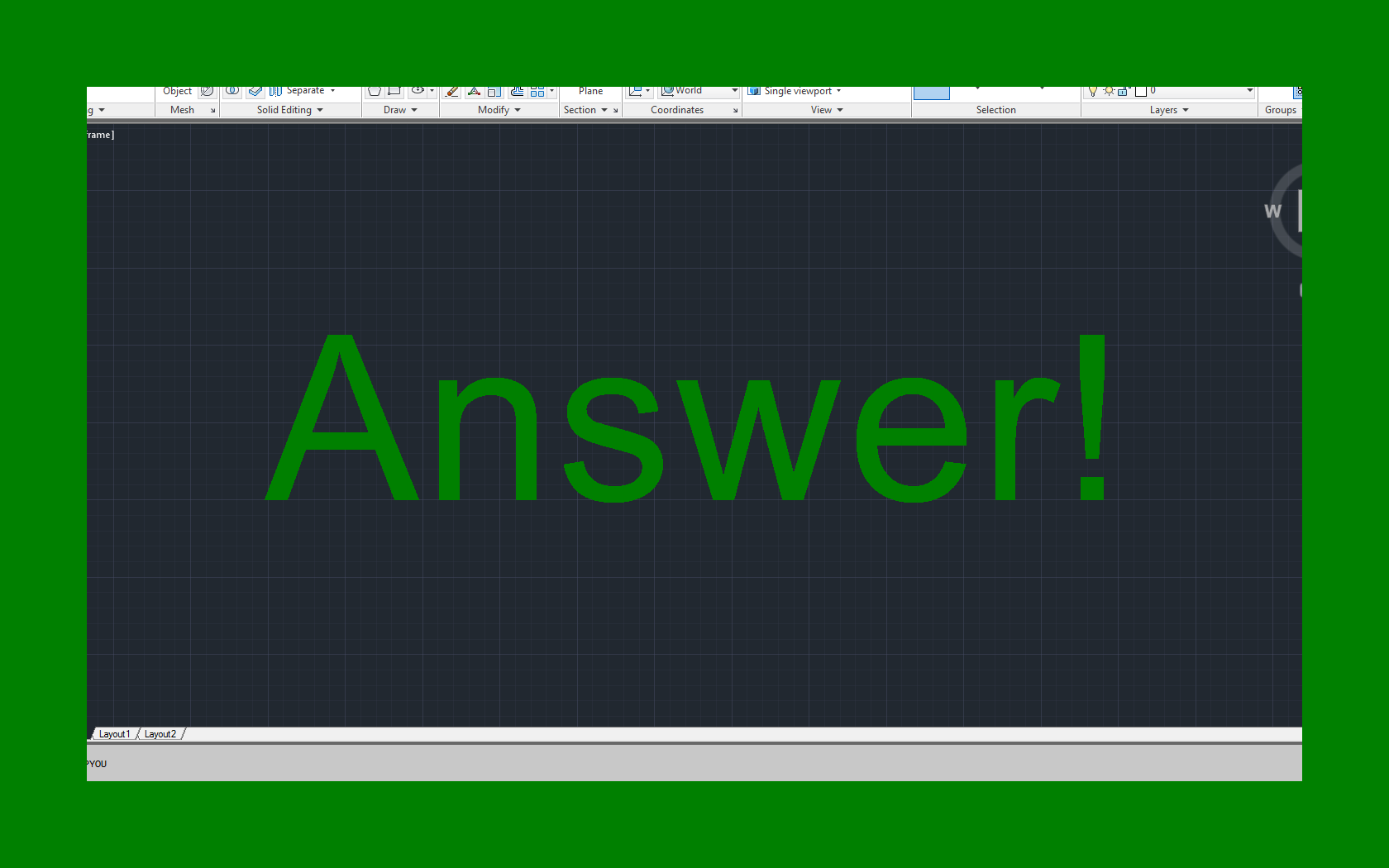

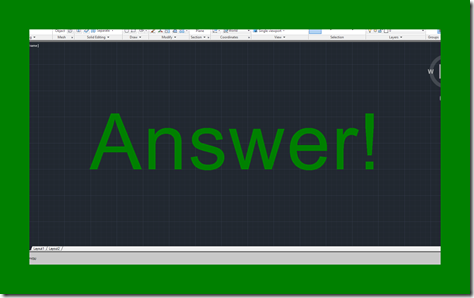

      [CommandMethod("HELPYOU")]
      public void ProvideHelp()
      {
        MessageFlasher.FlashMessage(Brushes.Green, "Answer!", 2, 1);
      }
    }
  }
}
