Creating a simple associative AutoCAD array along a path using .NET

I’m not sure why it’s taken me so long to get around to posting this code. It was originally developed by Philippe Leefsma for last year’s Developer Days, to demonstrate a very interesting API added to AutoCAD 2012. Looking back, it appears it was covered in this DevTV session, posted when AutoCAD 2012 was announced, so the information has been there for some of you to find, at least.

Anyway, as many of you will know, associative arrays are an extremely powerful feature within AutoCAD that allow you to create impressive results. You can create rectangular, polar and path-based arrays, and not just in 2D: in 3D, too.

My ultimate goal is to do something fun with arrays from inside a jig (yes, being driven by Kinect ;-). But let’s start, today, with a simple array along a path with hardcoded parameter values.

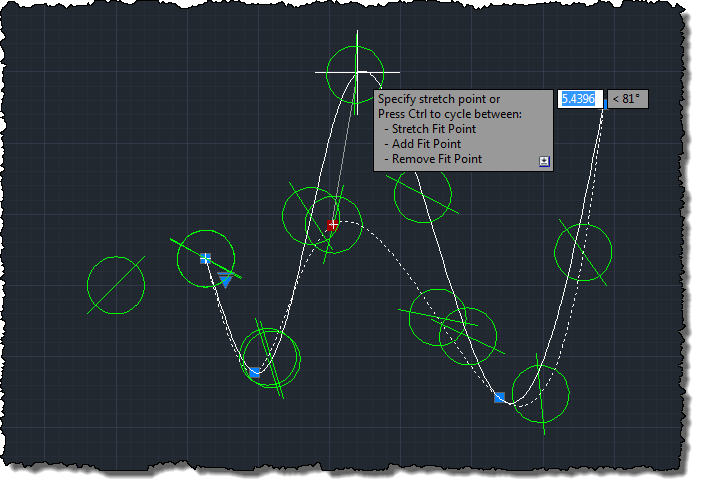

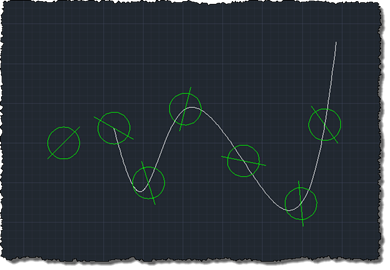

Here’s a subset of Philippe’s original code that creates a simple associative array of multiple entities (a line and circle) along a spline path:

using Autodesk.AutoCAD.ApplicationServices;
using Autodesk.AutoCAD.DatabaseServices;
using Autodesk.AutoCAD.Geometry;
using Autodesk.AutoCAD.Runtime;

namespace AssociativeArrays
{
  public class Commands
  {
    [CommandMethod("AAP")]
    public void CreateAssocArrayPath()
    {
      Database db =
        Application.DocumentManager.MdiActiveDocument.Database;

      Transaction tr =
        db.TransactionManager.StartTransaction();
      using (tr)
      {
        BlockTable bt =
          (BlockTable)tr.GetObject(
            db.BlockTableId, OpenMode.ForRead
          );

        BlockTableRecord btr =
          (BlockTableRecord)tr.GetObject(
            bt[BlockTableRecord.ModelSpace],
            OpenMode.ForWrite
          );

        // Add profile entities: a Circle and a Line

        Circle cir =
          new Circle(
            new Point3d(-10, 0, 0),
            new Vector3d(0, 0, 1),
            1.0
          );
        cir.ColorIndex = 3; // Green

        btr.AppendEntity(cir);
        tr.AddNewlyCreatedDBObject(cir, true);

        Line ln =
          new Line(
            new Point3d(-11, -1, 0),
            new Point3d(-9, 1, 0)
          );
        ln.ColorIndex = 3; // Green

        btr.AppendEntity(ln);
        tr.AddNewlyCreatedDBObject(ln, true);

        // Add path entity: a Spline, in this case

        double fitTol = 0.0;
        int order = 4;

        // An array of doubles to define the points
        // in our spline

        double[] ptAr =
          new double[]{
            -6.8447, 0.9430,  0,
            -5.1409, -3.0562, 0,
            -2.4095, 2.1049,  0,
            3.4590, -3.9479, 0,
            7.1370, 6.3472,  0
          };

        // We'll add the points to a collection

        Point3dCollection pts = new Point3dCollection();

        for (int i = 0, j = 0; i < ptAr.Length / 3; i++)
        {
          pts.Add(new Point3d(ptAr[j++], ptAr[j++], ptAr[j++]));
        }

        // Create the spline path and add it to the database

        Spline sp = new Spline(pts, order, fitTol);

        btr.AppendEntity(sp);
        tr.AddNewlyCreatedDBObject(sp, true);

        // Offset the Circle, Line and Spline by a fixed amount

        Matrix3d offset =
          Matrix3d.Displacement(new Vector3d(60, 10, 0));

        cir.TransformBy(offset);
        ln.TransformBy(offset);
        sp.TransformBy(offset);

        ObjectIdCollection srcEnts = new ObjectIdCollection();

        srcEnts.Add(cir.ObjectId);
        srcEnts.Add(ln.ObjectId);

        // Take the base point as the center of our Circle

        VertexRef basePt = new VertexRef(cir.Center);

        // Set some variables to define parameters for our path

        int itemCount = 6;
        double itemSpacing =
          sp.GetDistanceAtParameter(sp.EndParam) / itemCount;
        double rowSpacing = 0.0;
        double levelSpacing = 0.0;
        int rowCount = 0;
        int levelCount = 0;
        double rowElevation = 0.0;

        // Create the parameters for our associative path array

        AssocArrayPathParameters pars =
          new AssocArrayPathParameters(
            itemSpacing,
            rowSpacing,
            levelSpacing,
            itemCount,
            rowCount,
            levelCount,
            rowElevation
          );

        pars.Method =
          AssocArrayPathParameters.MethodType.Measure;

        pars.Path = new EdgeRef(sp);

        // Create the associative array itself

        AssocArray array =
          AssocArray.CreateArray(
            srcEnts,
            basePt,
            pars
          );

        // Evaluate the array

        AssocManager.EvaluateTopLevelNetwork(db, null, 0);

        tr.Commit();
      }
    }
  }
}
