Oh, what fun. Kinect’s audio capabilities were an area that I hadn’t spent any time on, but an email conversation with a developer (thanks, Glenn! ;-) spurred me to take a closer look. The Beta 2 version of the Microsoft Kinect SDK, there’s a new sample showing how to process audio and add speech recognition via the Microsoft Speech SDK.
The Kinect SDK sample is pretty interesting: it displays a graphical indicator of where the sound is located, relative to the device (its array of four microphones allows Kinect to quite accurately position where sound is coming from, presumably to associate commands with specific players), and responds to one of three colour commands (red, green and blue) by changing text on the window.
I decided to take the latter part of this behaviour and roll it into the base KinectJig, allowing the user to set a colour index property in the jig to one of six colours (red, yellow, green, blue, cyan or magenta, the first six AutoCAD colour indices) by just saying the word. Child jig implementations – such as KinectSegmentedSolidsJig – can then choose to pick up the property and use it for geometry.
Here’s the updated C# code for KinectJig:
using Autodesk.AutoCAD.ApplicationServices;
using Autodesk.AutoCAD.DatabaseServices;
using Autodesk.AutoCAD.EditorInput;
using Autodesk.AutoCAD.Geometry;
using Autodesk.AutoCAD.GraphicsInterface;
using Autodesk.AutoCAD.Runtime;
using Microsoft.Research.Kinect.Nui;
using Microsoft.Research.Kinect.Audio;
using Microsoft.Speech.AudioFormat;
using Microsoft.Speech.Recognition;
using System.Runtime.InteropServices;
using System.Collections.Generic;
using System.Diagnostics;
using System.Reflection;
using System.Threading;
using System.Linq;
using System.IO;
using System;
namespace KinectSamples
{
public class ColoredPoint3d
{
public double X, Y, Z;
public int R, G, B;
}
public abstract class KinectJig : DrawJig
{
// To stop the running jig by sending a cancel request
[DllImport("acad.exe", CharSet = CharSet.Auto,
CallingConvention = CallingConvention.Cdecl,
EntryPoint = "?acedPostCommand@@YAHPB_W@Z"
)]
extern static private int acedPostCommand(string strExpr);
// We need our Kinect sensor
private Runtime _kinect = null;
// And audio array
private KinectAudioSource _audio;
// Microsoft Speech recognition engine
private SpeechRecognitionEngine _sre;
// With the images collected by it
private ImageFrame _depth = null;
private ImageFrame _video = null;
// An offset value we use to move the mouse back
// and forth by one screen unit
private int _offset;
// Selected color, for whatever usage makes sense
// in child classes
private short _color;
internal short ColorIndex
{
get { return _color; }
}
// Sampling value to reduce point set on capture
internal static short Sampling
{
get
{
try
{
return (short)Application.GetSystemVariable("KINSAMP");
}
catch
{
return 50;
}
}
}
// Extents to filter points
private static Extents3d? _ext = null;
public static Extents3d? Extents
{
get { return _ext; }
set { _ext = value; }
}
public KinectJig()
{
// Initialise the various members
_offset = 1;
_color = 2;
_kinect = Runtime.Kinects[0];
_kinect.VideoFrameReady +=
new EventHandler<ImageFrameReadyEventArgs>(
OnVideoFrameReady
);
_kinect.DepthFrameReady +=
new EventHandler<ImageFrameReadyEventArgs>(
OnDepthFrameReady
);
_kinect.SkeletonFrameReady +=
new EventHandler<SkeletonFrameReadyEventArgs>(
OnSkeletonFrameReady
);
}
public virtual void OnDepthFrameReady(
object sender, ImageFrameReadyEventArgs e
)
{
_depth = e.ImageFrame;
}
public virtual void OnVideoFrameReady(
object sender, ImageFrameReadyEventArgs e
)
{
_video = e.ImageFrame;
}
public virtual void OnSkeletonFrameReady(
object sender, SkeletonFrameReadyEventArgs e
)
{
}
void OnSpeechRecognized(
object sender, SpeechRecognizedEventArgs e
)
{
// Ignore if we don't have a high degree of confidence
if (e.Result.Confidence < 0.8)
return;
// Set the color property based om the text input
switch (e.Result.Text.ToUpperInvariant())
{
case "RED":
_color = 1;
break;
case "YELLOW":
_color = 2;
break;
case "GREEN":
_color = 3;
break;
case "CYAN":
_color = 4;
break;
case "BLUE":
_color = 5;
break;
case "MAGENTA":
_color = 6;
break;
default:
_color = 7;
break;
}
}
public void StartSensor()
{
if (_kinect != null)
{
// We still need to enable skeletal tracking
// in order to map to "real" space, even
// if we're not actually getting skeleton data
_kinect.Initialize(
RuntimeOptions.UseDepth |
RuntimeOptions.UseColor |
RuntimeOptions.UseSkeletalTracking
);
_kinect.VideoStream.Open(
ImageStreamType.Video, 2,
ImageResolution.Resolution640x480,
ImageType.Color
);
_kinect.DepthStream.Open(
ImageStreamType.Depth, 2,
ImageResolution.Resolution640x480,
ImageType.Depth
);
InitializeSpeech();
StartSpeech();
}
}
private static RecognizerInfo GetKinectRecognizer()
{
Func<RecognizerInfo, bool> matchingFunc =
r =>
{
string value;
r.AdditionalInfo.TryGetValue("Kinect", out value);
return
"True".Equals(
value,
StringComparison.InvariantCultureIgnoreCase
) &&
"en-US".Equals(
r.Culture.Name,
StringComparison.InvariantCultureIgnoreCase
);
};
return
SpeechRecognitionEngine.InstalledRecognizers().Where(
matchingFunc
).FirstOrDefault();
}
private void InitializeSpeech()
{
RecognizerInfo ri = GetKinectRecognizer();
if (ri == null)
{
Editor ed =
Application.DocumentManager.MdiActiveDocument.Editor;
ed.WriteMessage(
"There was a problem initializing Speech Recognition. " +
"Ensure you have the Microsoft Speech SDK installed " +
"and configured."
);
}
try
{
_sre = new SpeechRecognitionEngine(ri.Id);
}
catch
{
Editor ed =
Application.DocumentManager.MdiActiveDocument.Editor;
ed.WriteMessage(
"There was a problem initializing Speech Recognition. " +
"Ensure you have the Microsoft Speech SDK installed " +
"and configured."
);
}
// Populate our word choices
Choices colors = new Choices();
colors.Add("red");
colors.Add("green");
colors.Add("blue");
colors.Add("yellow");
colors.Add("magenta");
colors.Add("cyan");
// Create a GrammarBuilder from them
GrammarBuilder gb = new GrammarBuilder();
gb.Culture = ri.Culture;
gb.Append(colors);
// Create the actual Grammar instance, and then load it
// into the speech recognizer
Grammar g = new Grammar(gb);
_sre.LoadGrammar(g);
// Attach our event handler for recognized commands
// We won't worry about rejected or hypothesized callbacks
_sre.SpeechRecognized += OnSpeechRecognized;
}
private void StartSpeech()
{
try
{
// Create and setup our audio source
_audio = new KinectAudioSource();
_audio.SystemMode = SystemMode.OptibeamArrayOnly;
_audio.FeatureMode = true;
_audio.AutomaticGainControl = false;
_audio.MicArrayMode = MicArrayMode.MicArrayAdaptiveBeam;
// Get the audio stream and pass it to the
// speech recognition engine
Stream kinectStream = _audio.Start();
_sre.SetInputToAudioStream(
kinectStream,
new SpeechAudioFormatInfo(
EncodingFormat.Pcm, 16000, 16, 1,
32000, 2, null
)
);
_sre.RecognizeAsync(RecognizeMode.Multiple);
}
catch
{
Editor ed =
Application.DocumentManager.MdiActiveDocument.Editor;
ed.WriteMessage(
"There was a problem initializing the KinectAudioSource." +
" Ensure you have the Kinect SDK installed correctly."
);
}
}
public void StopSensor()
{
if (_kinect != null)
{
_audio.Stop();
_sre.RecognizeAsyncCancel();
_sre.RecognizeAsyncStop();
_audio.Dispose();
_kinect.Uninitialize();
_kinect = null;
}
}
protected virtual SamplerStatus SamplerData()
{
return SamplerStatus.Cancel;
}
protected virtual bool WorldDrawData(WorldDraw draw)
{
return false;
}
protected override SamplerStatus Sampler(JigPrompts prompts)
{
// We don't really need a point, but we do need some
// user input event to allow us to loop, processing
// for the Kinect input
PromptPointResult ppr =
prompts.AcquirePoint("\nClick to capture: ");
if (ppr.Status == PromptStatus.OK)
{
return SamplerData();
}
return SamplerStatus.Cancel;
}
protected override bool WorldDraw(WorldDraw draw)
{
return WorldDrawData(draw);
}
public void ForceMessage()
{
// Let's move the mouse slightly to avoid having
// to do it manually to keep the input coming
System.Drawing.Point pt =
System.Windows.Forms.Cursor.Position;
System.Windows.Forms.Cursor.Position =
new System.Drawing.Point(
pt.X, pt.Y + _offset
);
_offset = -_offset;
}
public List<ColoredPoint3d> GeneratePointCloud(
int sampling, bool useColor = false)
{
return GeneratePointCloud(
_kinect, _depth, _video, sampling, useColor
);
}
// Generate a point cloud from depth and RGB data
internal static List<ColoredPoint3d> GeneratePointCloud(
Runtime kinect, ImageFrame depth, ImageFrame video,
int sampling, bool withColor = false
)
{
// We will return a list of our ColoredPoint3d objects
List<ColoredPoint3d> res = new List<ColoredPoint3d>();
// Let's start by determining the dimensions of the
// respective images
int depHeight = depth.Image.Height;
int depWidth = depth.Image.Width;
int vidHeight = video.Image.Height;
int vidWidth = video.Image.Width;
// For the sake of this initial implementation, we
// expect them to be the same size. But this should not
// actually need to be a requirement
if (vidHeight != depHeight || vidWidth != depWidth)
{
Application.DocumentManager.MdiActiveDocument.
Editor.WriteMessage(
"\nVideo and depth images are of different sizes."
);
return null;
}
// Depth and color data for each pixel
Byte[] depthData = depth.Image.Bits;
Byte[] colorData = video.Image.Bits;
// Loop through the depth information - we process two
// bytes at a time
for (int i = 0; i < depthData.Length; i += (2 * sampling))
{
// The depth pixel is two bytes long - we shift the
// upper byte by 8 bits (a byte) and "or" it with the
// lower byte
int depthPixel = (depthData[i + 1] << 8) | depthData[i];
// The x and y positions can be calculated using modulus
// division from the array index
int x = (i / 2) % depWidth;
int y = (i / 2) / depWidth;
// The x and y we pass into DepthImageToSkeleton() need to
// be normalised (between 0 and 1), so we divide by the
// width and height of the depth image, respectively
// As we're using UseDepth (not UseDepthAndPlayerIndex) in
// the depth sensor settings, we also need to shift the
// depth pixel by 3 bits
Vector v =
kinect.SkeletonEngine.DepthImageToSkeleton(
((float)x) / ((float)depWidth),
((float)y) / ((float)depHeight),
(short)(depthPixel << 3)
);
// A zero value for Z means there is no usable depth for
// that pixel
if (v.Z > 0)
{
// Create a ColorVector3 to store our XYZ and RGB info
// for a pixel
ColoredPoint3d cv = new ColoredPoint3d();
cv.X = v.X;
cv.Y = v.Z;
cv.Z = v.Y;
// Only calculate the colour when it's needed (as it's
// now more expensive, albeit more accurate)
if (withColor)
{
// Get the colour indices for that particular depth
// pixel. We once again need to shift the depth pixel
// and also need to flip the x value (as UseDepth means
// it is mirrored on X) and do so on the basis of
// 320x240 resolution (so we divide by 2, assuming
// 640x480 is chosen earlier), as that's what this
// function expects. Phew!
int colorX, colorY;
kinect.NuiCamera.
GetColorPixelCoordinatesFromDepthPixel(
video.Resolution, video.ViewArea,
320 - (x / 2), (y / 2), (short)(depthPixel << 3),
out colorX, out colorY
);
// Make sure both indices are within bounds
colorX = Math.Max(0, Math.Min(vidWidth - 1, colorX));
colorY = Math.Max(0, Math.Min(vidHeight - 1, colorY));
// Extract the RGB data from the appropriate place
// in the colour data
int colIndex = 4 * (colorX + (colorY * vidWidth));
cv.B = (byte)(colorData[colIndex + 0]);
cv.G = (byte)(colorData[colIndex + 1]);
cv.R = (byte)(colorData[colIndex + 2]);
}
else
{
// If we don't need colour information, just set each
// pixel to white
cv.B = 255;
cv.G = 255;
cv.R = 255;
}
// Add our pixel data to the list to return
res.Add(cv);
}
}
// Apply a bounding box filter, if one is defined
if (_ext.HasValue)
{
// Use LINQ to get the points within the
// bounding box
var vecSet =
from ColoredPoint3d vec in res
where
vec.X > _ext.Value.MinPoint.X &&
vec.X < _ext.Value.MaxPoint.X &&
vec.Y > _ext.Value.MinPoint.Y &&
vec.Y < _ext.Value.MaxPoint.Y &&
vec.Z > _ext.Value.MinPoint.Z &&
vec.Z < _ext.Value.MaxPoint.Z
select vec;
// Convert our IEnumerable<> into a List<>
res = vecSet.ToList<ColoredPoint3d>();
}
return res;
}
// Save the provided point cloud to a specific file
internal static void ExportPointCloud(
List<ColoredPoint3d> vecs, string filename
)
{
if (vecs.Count > 0)
{
using (StreamWriter sw = new StreamWriter(filename))
{
// For each pixel, write a line to the text file:
// X, Y, Z, R, G, B
foreach (ColoredPoint3d pt in vecs)
{
sw.WriteLine(
"{0}, {1}, {2}, {3}, {4}, {5}",
pt.X, pt.Y, pt.Z, pt.R, pt.G, pt.B
);
}
}
}
}
// Translate from Skeleton Space to WCS
internal static Point3d PointFromVector(Vector v)
{
// Rather than just return a point, we're effectively
// transforming it to the drawing space: flipping the
// Y and Z axes (which makes it consistent with the
// point cloud, and makes sure Z is actually up - from
// the Kinect's perspective Y is up), and reversing
// the X axis (which is the result of choosing UseDepth
// rather than UseDepthAndPlayerIndex)
return new Point3d(-v.X, v.Z, v.Y);
}
// Cancel the running jig
internal static void CancelJig()
{
acedPostCommand("CANCELCMD");
}
// Write the provided point cloud to file, then chain
// the commands needed to import it into AutoCAD
public void WriteAndImportPointCloud(
Document doc, List<ColoredPoint3d> vecs
)
{
Editor ed = doc.Editor;
// We'll store most local files in the temp folder.
// We get a temp filename, delete the file and
// use the name for our folder
string localPath = Path.GetTempFileName();
File.Delete(localPath);
Directory.CreateDirectory(localPath);
localPath += "\\";
// Paths for our temporary files
string txtPath = localPath + "points.txt";
string lasPath = localPath + "points.las";
// Our PCG file will be stored under My Documents
string outputPath =
Environment.GetFolderPath(
Environment.SpecialFolder.MyDocuments
) + "\\Kinect Point Clouds\\";
if (!Directory.Exists(outputPath))
Directory.CreateDirectory(outputPath);
// We'll use the title as a base filename for the PCG,
// but will use an incremented integer to get an unused
// filename
int cnt = 0;
string pcgPath;
do
{
pcgPath =
outputPath + "Kinect" +
(cnt == 0 ? "" : cnt.ToString()) + ".pcg";
cnt++;
}
while (File.Exists(pcgPath));
// The path to the txt2las tool will be the same as the
// executing assembly (our DLL)
string exePath =
Path.GetDirectoryName(
Assembly.GetExecutingAssembly().Location
) + "\\";
if (!File.Exists(exePath + "txt2las.exe"))
{
ed.WriteMessage(
"\nCould not find the txt2las tool: please make sure " +
"it is in the same folder as the application DLL."
);
return;
}
// Export our point cloud from the jig
ed.WriteMessage(
"\nSaving TXT file of the captured points.\n"
);
ExportPointCloud(vecs, txtPath);
// Use the txt2las utility to create a .LAS
// file from our text file
ed.WriteMessage(
"\nCreating a LAS from the TXT file.\n"
);
ProcessStartInfo psi =
new ProcessStartInfo(
exePath + "txt2las",
"-i \"" + txtPath +
"\" -o \"" + lasPath +
"\" -parse xyzRGB"
);
psi.CreateNoWindow = false;
psi.WindowStyle = ProcessWindowStyle.Hidden;
// Wait up to 20 seconds for the process to exit
try
{
using (Process p = Process.Start(psi))
{
p.WaitForExit();
}
}
catch
{ }
// If there's a problem, we return
if (!File.Exists(lasPath))
{
ed.WriteMessage(
"\nError creating LAS file."
);
return;
}
File.Delete(txtPath);
ed.WriteMessage(
"Indexing the LAS and attaching the PCG.\n"
);
// Index the .LAS file, creating a .PCG
string lasLisp = lasPath.Replace('\\', '/'),
pcgLisp = pcgPath.Replace('\\', '/');
doc.SendStringToExecute(
"(command \"_.POINTCLOUDINDEX\" \"" +
lasLisp + "\" \"" +
pcgLisp + "\")(princ) ",
false, false, false
);
// Attach the .PCG file
doc.SendStringToExecute(
"_.WAITFORFILE \"" +
pcgLisp + "\" \"" +
lasLisp + "\" " +
"(command \"_.-POINTCLOUDATTACH\" \"" +
pcgLisp +
"\" \"0,0\" \"1\" \"0\")(princ) ",
false, false, false
);
doc.SendStringToExecute(
"_.-VISUALSTYLES _C _Realistic ",
false, false, false
);
}
}
public class KinectCommands
{
// Set the clipping volume for the current point cloud
[CommandMethod("ADNPLUGINS", "KINBOUNDS", CommandFlags.Modal)]
public void SetBoundingBox()
{
Document doc =
Autodesk.AutoCAD.ApplicationServices.
Application.DocumentManager.MdiActiveDocument;
Editor ed = doc.Editor;
// Ask the user to select an entity
PromptEntityOptions peo =
new PromptEntityOptions(
"\nSelect entity to define bounding box"
);
peo.AllowNone = true;
peo.Keywords.Add("None");
peo.Keywords.Default = "None";
PromptEntityResult per = ed.GetEntity(peo);
if (per.Status != PromptStatus.OK)
return;
// If "None" selected, clear the bounding box
if (per.Status == PromptStatus.None ||
per.StringResult == "None")
{
KinectJig.Extents = null;
ed.WriteMessage("\nBounding box cleared.");
return;
}
// Otherwise open the entity and gets its extents
Transaction tr =
doc.TransactionManager.StartTransaction();
using (tr)
{
Entity ent =
tr.GetObject(per.ObjectId, OpenMode.ForRead)
as Entity;
if (ent != null)
KinectJig.Extents = ent.Bounds;
ed.WriteMessage(
"\nBounding box set to {0}", KinectJig.Extents
);
tr.Commit();
}
}
// A command which waits for a particular PCG file to exist
[CommandMethod(
"ADNPLUGINS", "WAITFORFILE", CommandFlags.NoHistory
)]
public void WaitForFileToExist()
{
Document doc =
Application.DocumentManager.MdiActiveDocument;
Editor ed = doc.Editor;
HostApplicationServices ha =
HostApplicationServices.Current;
PromptResult pr = ed.GetString("Enter path to PCG: ");
if (pr.Status != PromptStatus.OK)
return;
string pcgPath = pr.StringResult.Replace('/', '\\');
pr = ed.GetString("Enter path to LAS: ");
if (pr.Status != PromptStatus.OK)
return;
string lasPath = pr.StringResult.Replace('/', '\\');
ed.WriteMessage(
"\nWaiting for PCG creation to complete...\n"
);
// Check the write time for the PCG file...
// if it hasn't been written to for at least half a second,
// then we try to use a file lock to see whether the file
// is accessible or not
const int ticks = 50;
TimeSpan diff;
bool cancelled = false;
// First loop is to see when writing has stopped
// (better than always throwing exceptions)
while (true)
{
if (File.Exists(pcgPath))
{
DateTime dt = File.GetLastWriteTime(pcgPath);
diff = DateTime.Now - dt;
if (diff.Ticks > ticks)
break;
}
System.Windows.Forms.Application.DoEvents();
if (HostApplicationServices.Current.UserBreak())
{
cancelled = true;
break;
}
}
// Second loop will wait until file is finally accessible
// (by calling a function that requests an exclusive lock)
if (!cancelled)
{
int inacc = 0;
while (true)
{
if (IsFileAccessible(pcgPath))
break;
else
inacc++;
System.Windows.Forms.Application.DoEvents();
if (HostApplicationServices.Current.UserBreak())
{
cancelled = true;
break;
}
}
ed.WriteMessage("\nFile inaccessible {0} times.", inacc);
try
{
CleanupTmpFiles(lasPath);
}
catch
{ }
}
}
// Return whether a file is accessible
internal bool IsFileAccessible(string filename)
{
// If the file can be opened for exclusive access it means
// the file is accesible
try
{
FileStream fs =
File.Open(
filename, FileMode.Open,
FileAccess.Read, FileShare.None
);
using (fs)
{
return true;
}
}
catch (IOException)
{
return false;
}
}
// Remove any temporary files from the point cloud import
internal void CleanupTmpFiles(string txtPath)
{
if (File.Exists(txtPath))
File.Delete(txtPath);
Directory.Delete(
Path.GetDirectoryName(txtPath)
);
}
}
}

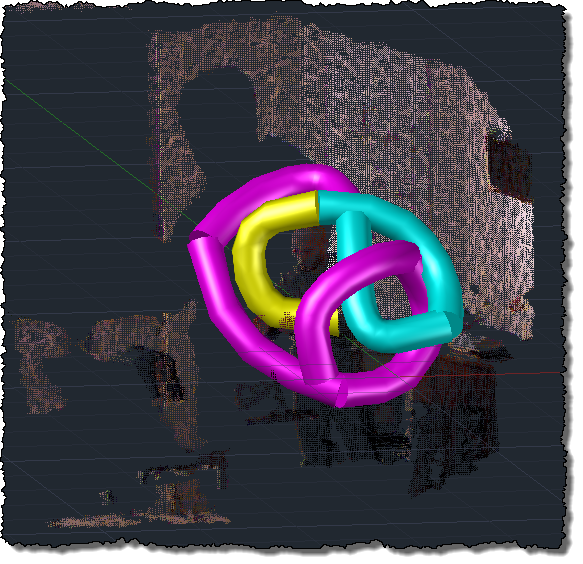

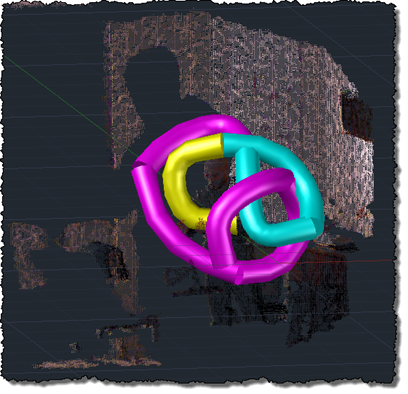

Here's the updated implementation for created segmented solids:
using Autodesk.AutoCAD.ApplicationServices;
using Autodesk.AutoCAD.DatabaseServices;
using Autodesk.AutoCAD.EditorInput;
using Autodesk.AutoCAD.Geometry;
using Autodesk.AutoCAD.Runtime;
using Autodesk.AutoCAD.GraphicsInterface;
using Microsoft.Research.Kinect.Nui;
using System.Runtime.InteropServices;
using System.Collections.Generic;
using System.Diagnostics;
using System.Reflection;
using System.IO;
using System;
namespace KinectSamples
{
public class KinectSegmentedSolidsJig : KinectPointCloudJig
{
// Our transient solids (cursor sphere & tube) are yellow
const short transSolColor = 2;
// Our final solids will be green
const short finalSolColor = 3;
// A transaction and database to add solids
private Transaction _tr;
private Document _doc;
// A list of vertices to draw between
// (we use this for the final polyline creation)
private Point3dCollection _vertices;
private int _lastDrawnVertex;
// Entities to create our solid
private DBObjectCollection _created;
// The radius of the profile circle to create
private double _profRad;
// The location at which to draw a sphere when resizing
private Point3d _resizeLocation;
// The approximate length of each swept segment
// (as a multiple of the radius)
private double _segFactor;
// Flags to indicate Kinect gesture modes
private bool _resizing; // Drawing mode active
private bool _drawing; // Drawing mode active
private bool _finished; // Finished - want to exit
public bool Finished
{
get { return _finished; }
}
public KinectSegmentedSolidsJig(
Document doc, Transaction tr, double profRad, double factor
)
{
// Initialise the various members
_doc = doc;
_tr = tr;
_vertices = new Point3dCollection();
_lastDrawnVertex = -1;
_resizing = false;
_drawing = false;
_finished = false;
_created = new DBObjectCollection();
_profRad = profRad;
_segFactor = factor;
}
public override void OnSkeletonFrameReady(
object sender, SkeletonFrameReadyEventArgs e
)
{
SkeletonFrame s = e.SkeletonFrame;
if (!_finished)
{
foreach (SkeletonData data in s.Skeletons)
{
if (data.TrackingState == SkeletonTrackingState.Tracked)
{
Point3d leftHip =
PointFromVector(
data.Joints[JointID.HipLeft].Position
);
Point3d leftHand =
PointFromVector(
data.Joints[JointID.HandLeft].Position
);
Point3d rightHand =
PointFromVector(
data.Joints[JointID.HandRight].Position
);
if (
leftHand.DistanceTo(Point3d.Origin) > 0 &&
rightHand.DistanceTo(Point3d.Origin) > 0 &&
leftHand.DistanceTo(rightHand) < 0.03)
{
// Hands are less than 3cm from each other
_drawing = false;
_resizing = false;
_finished = true;
}
else
{
// Hands are within 10cm of each other vertically and
// both hands are above the waist, so we resize the
// profile radius
_resizing =
(leftHand.Z > leftHip.Z &&
rightHand.Z > leftHip.Z &&
Math.Abs(leftHand.Z - rightHand.Z) < 0.1);
// If the left hand is below the waist, we draw
_drawing = (leftHand.Z < leftHip.Z);
}
if (_resizing)
{
// If resizing, set some data to help draw
// a sphere where we're resizing
Vector3d vec = (leftHand - rightHand) / 2;
_resizeLocation = rightHand + vec;
_profRad = vec.Length;
}
if (_drawing)
{
// If we have at least one prior vertex...
if (_vertices.Count > 0)
{
// ... check whether we're a certain distance away
// from the last one before adding it (this smooths
// off the jitters of adding every point)
Point3d lastVert = _vertices[_vertices.Count - 1];
if (lastVert.DistanceTo(rightHand) > _profRad * 4)
{
// Add the new vertex to our list
_vertices.Add(rightHand);
}
}
else
{
// Add the first vertex to our list
_vertices.Add(rightHand);
}
}
break;
}
}
}
}
public void Cleanup()
{
_vertices.Clear();
foreach (DBObject obj in _created)
{
obj.Dispose();
}
_created.Clear();
}
private bool GenerateTube(
double profRad, Point3dCollection pts, out Solid3d sol
)
{
bool readyToBreak;
// Let's start by creating our spline path
using (Spline path = new Spline(pts, 0, 0.0))
{
double pathLen = path.GetDistanceAtParameter(path.EndParam);
readyToBreak = (pathLen > _profRad * _segFactor);
// And our sweep profile
Circle profile =
new Circle(pts[0], pts[1] - pts[0], profRad);
using (profile)
{
// Then our sweep options
SweepOptionsBuilder sob = new SweepOptionsBuilder();
// Align the entity to sweep to the path
sob.Align =
SweepOptionsAlignOption.AlignSweepEntityToPath;
// The base point is the start of the path
sob.BasePoint = path.StartPoint;
// The profile will rotate to follow the path
sob.Bank = true;
using (SweepOptions sweepOpts = sob.ToSweepOptions())
{
sol = new Solid3d();
sol.ColorIndex = ColorIndex;
// Sweep our profile along our path
sol.CreateSweptSolid(profile, path, sweepOpts);
}
}
}
_lastDrawnVertex = pts.Count - 1;
return readyToBreak;
}
protected override SamplerStatus SamplerData()
{
if (_finished)
{
CancelJig();
return SamplerStatus.Cancel;
}
// If not finished, but stopped drawing, add the
// geometry that was previously drawn to the database
if (!_drawing &&
(_created.Count > 0 || _vertices.Count > 0)
)
{
AddSolidOrPath();
}
return base.SamplerData();
}
// Helper functions to extract/blank portions of our
// vertex list (when we want to draw the beginning of it)
private void ClearAllButLast(Point3dCollection pts, int n)
{
while (pts.Count > n)
{
pts.RemoveAt(0);
}
_lastDrawnVertex = -1;
}
private Point3dCollection GetAllButLast(
Point3dCollection pts, int n
)
{
Point3dCollection res = new Point3dCollection();
for (int i = 0; i < pts.Count - n; i++)
{
res.Add(pts[i]);
}
return res;
}
protected override bool WorldDrawData(WorldDraw draw)
{
if (!base.WorldDrawData(draw))
return false;
short origCol = draw.SubEntityTraits.Color;
if (_resizing)
{
using (Solid3d sphere = new Solid3d())
{
try
{
sphere.CreateSphere(_profRad);
if (sphere != null)
{
sphere.TransformBy(
Matrix3d.Displacement(
_resizeLocation - Point3d.Origin
)
);
// Draw the cursor
draw.SubEntityTraits.Color = ColorIndex;
sphere.WorldDraw(draw);
}
}
catch { }
finally
{
draw.SubEntityTraits.Color = origCol;
}
}
return true;
}
// If we're currently drawing...
if (_drawing)
{
Solid3d sol = null;
try
{
// If we have vertices that haven't yet been drawn...
if (_vertices.Count > 1 //&&
//_vertices.Count - 1 > _lastDrawnVertex
)
{
// ... generate a tube
if (GenerateTube(_profRad, _vertices, out sol))
{
// We now need to break the pipe...
// If it was created, add it to our list to draw
_created.Add(sol);
sol = null;
// Clear all but the last vertex to draw from
// next time
ClearAllButLast(_vertices, 1);
}
}
}
catch
{
// If the tube generation failed...
if (sol != null)
{
sol.Dispose();
}
// Loop, creating the most recent successful tube we can
bool succeeded = false;
int n = 1;
do
{
try
{
// Generate the previous, working tube using all
// but the last points (if it fails, one more is
// excluded per iteration, until we get a working
// tube)
GenerateTube(
_profRad, GetAllButLast(_vertices, n++), out sol
);
_created.Add(sol);
sol = null;
succeeded = true;
}
catch { }
}
while (!succeeded && n < _vertices.Count);
if (succeeded)
{
ClearAllButLast(_vertices, n - 1);
if (_vertices.Count > 1)
{
try
{
// And generate a tube for the remaining vertices
GenerateTube(_profRad, _vertices, out sol);
}
catch
{
succeeded = false;
}
}
}
if (!succeeded && sol != null)
{
sol.Dispose();
sol = null;
}
}
// Draw our solid(s)
draw.SubEntityTraits.Color = ColorIndex;
foreach (DBObject obj in _created)
{
Entity ent = obj as Entity;
if (ent != null)
{
try
{
ent.WorldDraw(draw);
}
catch
{}
}
}
if (sol != null)
{
try
{
sol.WorldDraw(draw);
}
catch
{ }
}
if (_vertices.Count > 0)
{
Point3d lastPt = _vertices[_vertices.Count - 1];
// Create a cursor sphere
using (Solid3d cursor = new Solid3d())
{
try
{
cursor.CreateSphere(_profRad);
if (cursor != null)
{
cursor.TransformBy(
Matrix3d.Displacement(lastPt - Point3d.Origin)
);
// Draw the cursor
draw.SubEntityTraits.Color = ColorIndex;
cursor.WorldDraw(draw);
}
}
catch { }
}
}
if (sol != null)
{
sol.Dispose();
}
}
draw.SubEntityTraits.Color = origCol;
return true;
}
public void AddSolidOrPath()
{
Solid3d sol = null;
try
{
GenerateTube(_profRad, _vertices, out sol);
}
catch
{
if (sol != null)
{
sol.Dispose();
sol = null;
}
}
if (_created.Count > 0 || sol != null)
{
if (sol != null)
{
_created.Add(sol);
}
BlockTableRecord btr =
(BlockTableRecord)_tr.GetObject(
_doc.Database.CurrentSpaceId,
OpenMode.ForWrite
);
foreach (DBObject obj in _created)
{
Entity ent = obj as Entity;
if (ent != null)
{
//ent.ColorIndex = finalSolColor;
btr.AppendEntity(ent);
_tr.AddNewlyCreatedDBObject(ent, true);
}
}
_created.Clear();
}
Cleanup();
_vertices.Clear();
}
}
public class KinectSegmentedSolidCommands
{
[CommandMethod("ADNPLUGINS", "KINEXT2", CommandFlags.Modal)]
public void ImportFromKinect()
{
Document doc =
Autodesk.AutoCAD.ApplicationServices.
Application.DocumentManager.MdiActiveDocument;
Editor ed = doc.Editor;
Transaction tr =
doc.TransactionManager.StartTransaction();
// Pass in a default radius of 5cm and a segment length
// of 10 times that
KinectSegmentedSolidsJig kj =
new KinectSegmentedSolidsJig(doc, tr, 0.05, 10);
try
{
kj.StartSensor();
}
catch (System.Exception ex)
{
ed.WriteMessage(
"\nUnable to start Kinect sensor: " + ex.Message
);
tr.Dispose();
return;
}
PromptResult pr = ed.Drag(kj);
if (pr.Status != PromptStatus.OK && !kj.Finished)
{
kj.StopSensor();
kj.Cleanup();
tr.Dispose();
return;
}
// Generate a final point cloud with color before stopping
// the sensor
kj.UpdatePointCloud();
kj.StopSensor();
kj.AddSolidOrPath();
tr.Commit();
// Manually dispose to avoid scoping issues with
// other variables
tr.Dispose();
kj.WriteAndImportPointCloud(doc, kj.Vectors);
}
}
}
To make all this work, you'll also need to install some additional components, as pointed out on the Kinect SDK download page:
- Microsoft Speech Platform Runtime
- Microsoft Speech Platform SDK
- Kinect for Windows Language Pack
You’ll need a project reference to Microsoft.Speech.dll, in addition to those to our Kinect and AutoCAD assemblies.
Running the updated KINEXT2 command, it’s then simply a matter of saying the name of one of the six colours, in order to change the current (and subsequent) segments to the chosen colour.
At least that’s the theory. It currently seems a little sluggish (perhaps because we’re relying on an asynchronous callback changing the property back in our jig) and it doesn’t always work when I expect it to (no idea why that is). But when it does work it’s pretty cool, and demonstrates the potential, at least. I’ll certainly be integrating this into my AU session on AutoCAD + Kinect.
