Creating transparent hatches in AutoCAD using .NET

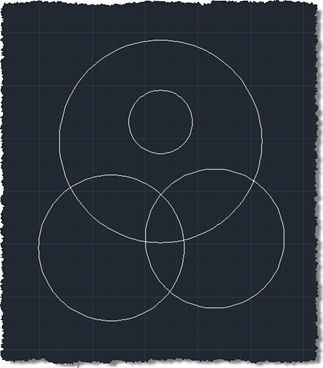

In the last post we used an API introduced in AutoCAD 2011 to trace boundaries defined by geometry in a drawing. In this post we’re going to use these boundaries to define the limits of solid hatch objects which we will – using another new capability in AutoCAD 2011 - make transparent.

Here’s the updated C# code to define our TBH command with new/changed lines in red (you can also get the source file without line numbers here):

    1 using Autodesk.AutoCAD.ApplicationServices;
    2 using Autodesk.AutoCAD.EditorInput;
    3 using Autodesk.AutoCAD.DatabaseServices;
    4 using Autodesk.AutoCAD.Runtime;
    5 using Autodesk.AutoCAD.Colors;
    6
    7 namespace TraceBoundaryWithHatch
    8 {
    9   public class Commands
   10   {
   11     static int _index = 1;
   12
   13     [CommandMethod("TBH")]
   14     public void TraceBoundaryAndHatch()
   15     {
   16       Document doc =
   17         Application.DocumentManager.MdiActiveDocument;
   18       Database db = doc.Database;
   19       Editor ed = doc.Editor;
   20
   21       // Select a seed point for our boundary
   22
   23       PromptPointResult ppr =
   24         ed.GetPoint("\nSelect internal point: ");
   25
   26       if (ppr.Status != PromptStatus.OK)
   27         return;
   28
   29       // Get the objects making up our boundary
   30
   31       DBObjectCollection objs =
   32         ed.TraceBoundary(ppr.Value, false);
   33
   34       if (objs.Count > 0)
   35       {
   36         Transaction tr =
   37           doc.TransactionManager.StartTransaction();
   38         using (tr)
   39         {
   40           // We'll add the objects to the model space
   41
   42           BlockTable bt =
   43             (BlockTable)tr.GetObject(
   44               doc.Database.BlockTableId,
   45               OpenMode.ForRead
   46             );
   47
   48           BlockTableRecord btr =
   49             (BlockTableRecord)tr.GetObject(
   50               bt[BlockTableRecord.ModelSpace],
   51               OpenMode.ForWrite
   52             );
   53
   54           // Add our boundary objects to the drawing and
   55           // collect their ObjectIds for later use
   56
   57           ObjectIdCollection ids = new ObjectIdCollection();
   58           foreach (DBObject obj in objs)
   59           {
   60             Entity ent = obj as Entity;
   61             if (ent != null)
   62             {
   63               // Set our boundary objects to be of
   64               // our auto-incremented colour index
   65
   66               ent.ColorIndex = _index;
   67
   68               // Set our transparency to 50% (=127)
   69               // Alpha value is Truncate(255 * (100-n)/100)
   70
   71               ent.Transparency = new Transparency(127);
   72
   73               // Add each boundary object to the modelspace
   74               // and add its ID to a collection
   75
   76               ids.Add(btr.AppendEntity(ent));
   77               tr.AddNewlyCreatedDBObject(ent, true);
   78             }
   79           }
   80
   81           // Create our hatch
   82
   83           Hatch hat = new Hatch();
   84
   85           // Solid fill of our auto-incremented colour index
   86
   87           hat.SetHatchPattern(
   88             HatchPatternType.PreDefined,
   89             "SOLID"
   90           );
   91           hat.ColorIndex = _index++;
   92
   93           // Set our transparency to 50% (=127)
   94           // Alpha value is Truncate(255 * (100-n)/100)
   95
   96           hat.Transparency = new Transparency(127);
   97
   98           // Add the hatch to the modelspace & transaction
   99
  100           ObjectId hatId = btr.AppendEntity(hat);
  101           tr.AddNewlyCreatedDBObject(hat, true);
  102
  103           // Add the hatch loops and complete the hatch
  104
  105           hat.Associative = true;
  106           hat.AppendLoop(
  107             HatchLoopTypes.Default,
  108             ids
  109           );
  110
  111           hat.EvaluateHatch(true);
  112
  113           // Commit the transaction
  114
  115           tr.Commit();
  116         }
  117       }
  118     }
  119   }
  120 }

A few things to note about this implementation:

We choose not to detect islands when using the results to create a hatch
- Hatches clearly support islands, but we would make separate calls to AppendLoop() to add them
- It should be possible to detect islands whether geometrically or by diffing the results of two calls to TraceBoundary(), one detecting islands, one not

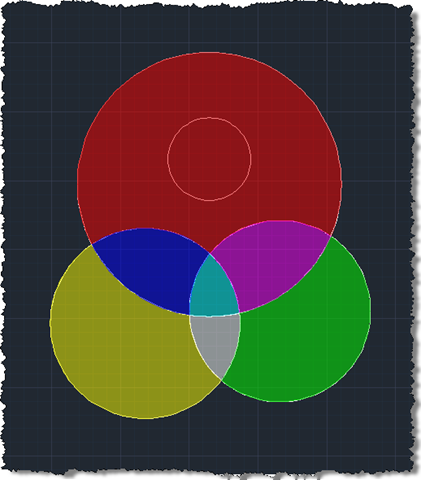

We’ve applied transparency both to the boundary objects and the hatch
- We no longer set the lineweight on the boundary objects
The Alpha-based transparency value isn’t as simple as using a straight percentage
- After doing some tests (setting the transparency as a percentage and running a simple command to print the Alpha value to the command-line), I found that the value stored actually seems to reflect “opacity” rather than transparency (i.e. it’s an inverse relationship), so we subtract our percentage from 100 before applying it to the total of 255 (and truncating – not rounding – the result)
- It also appears you can’t have transparency of higher than 90% (at least not according to my tests)
  - In our case we’re just using 50% transparency
