Creating non-rectangular paperspace viewports in AutoCAD using .NET

Thanks to Philippe Leefsma, from DevTech in Europe, for the ObjectARX code that inspired this post.

In AutoCAD it’s possible to create non-rectangular viewports in paperspace using a variety of closed curve objects: circles, polylines (2D, 3D and lightweight), ellipses, regions, splines and faces. In this post we’re going to see some code that creates four new viewports in the paperspace of the active drawing using a subset of these objects: an Ellipse, a Circle, a closed Spline and a closed Polyline.

Here’s the C# code:

using Autodesk.AutoCAD.ApplicationServices;
using Autodesk.AutoCAD.Runtime;
using Autodesk.AutoCAD.DatabaseServices;
using Autodesk.AutoCAD.EditorInput;
using Autodesk.AutoCAD.Geometry;

namespace ViewportCreation
{
  public class Commands
  {
    [CommandMethod("NRVPS")]
    static public void CreateNonRectangularViewports()
    {
      Document doc =
        Application.DocumentManager.MdiActiveDocument;
      Database db = doc.Database;
      Editor ed = doc.Editor;

      // We're accessing drawing objects, so we need a transaction

      Transaction tr = db.TransactionManager.StartTransaction();
      using (tr)
      {
        // Get the primary paperspace from the block table

        BlockTable bt =
          (BlockTable)tr.GetObject(
            db.BlockTableId,
            OpenMode.ForRead
          );
        BlockTableRecord ps =
          (BlockTableRecord)tr.GetObject(
            bt[BlockTableRecord.PaperSpace],
            OpenMode.ForWrite
          );

        // Create a variety of objects for our clip boundaries

        DBObjectCollection objs = new DBObjectCollection();

        // An ellipse...

        Ellipse el =
          new Ellipse(
            new Point3d(3.5, 4.7, 0),
            Vector3d.ZAxis,
            new Vector3d(1.4, 0.03, 0),
            0.35, 0, 0
          );
        objs.Add(el);

        // A circle...

        Circle cir =
          new Circle(
            new Point3d(3.4, 1.9, 0),
            Vector3d.ZAxis,
            0.9
          );
        objs.Add(cir);

        // A closed polyline...

        Polyline pl =
          new Polyline(6);
        pl.AddVertexAt(0, new Point2d(4.92, 5.29), 0, 0, 0);
        pl.AddVertexAt(1, new Point2d(5.16, 6.02), 0, 0, 0);
        pl.AddVertexAt(2, new Point2d(6.12, 6.49), 0, 0, 0);
        pl.AddVertexAt(3, new Point2d(7.29, 6.26), -0.27, 0, 0);
        pl.AddVertexAt(4, new Point2d(8.11, 5.53), -0.47, 0, 0);
        pl.AddVertexAt(5, new Point2d(7.75, 5.41), 0, 0, 0);
        pl.Closed = true;
        objs.Add(pl);

        // A closed spline...

        Point3dCollection pts =
          new Point3dCollection(
            new Point3d[] {
              new Point3d (5.5, 2.06, 0),
              new Point3d (5.26, 2.62, 0),
              new Point3d (5.66, 4.16, 0),
              new Point3d (8.56, 4.21, 0),
              new Point3d (7.2, 0.86, 0),
              new Point3d (6.44, 2.85, 0),
              new Point3d (5.62, 1.8, 0),
              new Point3d (5.5, 2.06, 0)
            }
          );
        Spline sp = new Spline(pts, 2, 0.5);
        objs.Add(sp);

        // Add each to the paperspace blocktablerecord
        // and create/add an associated viewport object

        foreach (DBObject obj in objs)
        {
          Entity ent = obj as Entity;
          if (ent != null)
          {
            // Add our boundary to paperspace and the
            // transaction

            ObjectId id = ps.AppendEntity(ent);
            tr.AddNewlyCreatedDBObject(obj, true);

            // Create our viewport, adding that also

            Viewport vp = new Viewport();
            ps.AppendEntity(vp);
            tr.AddNewlyCreatedDBObject(vp, true);

            // Set the boundary entity and turn the
            // viewport/clipping on

            vp.NonRectClipEntityId = id;
            vp.NonRectClipOn = true;
            vp.On = true;
          }
        }
        tr.Commit();
      }

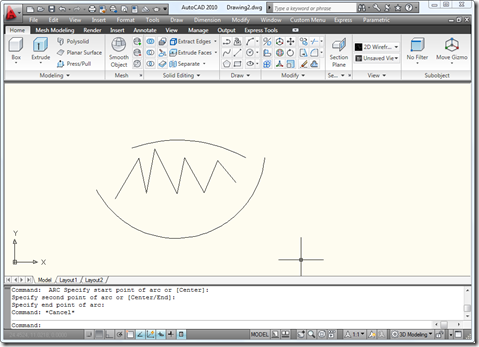

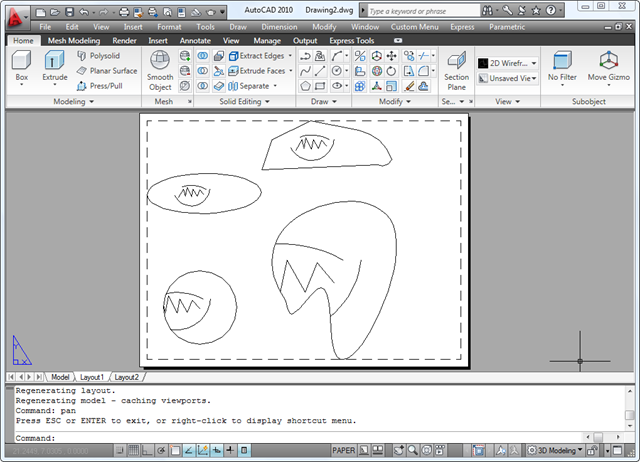

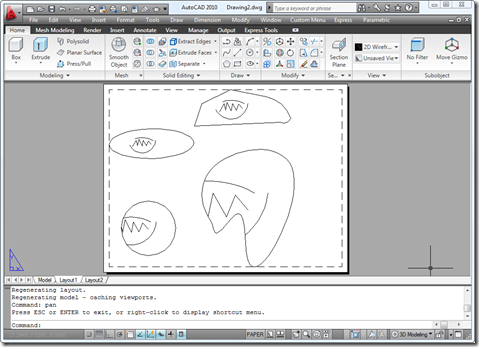

      // Let's take a look at the results in paperspace

      db.TileMode = false;
    }
  }
}
