This post continues on from Part 1 of this series. You'll find much of this content has been used before in these previous posts, although post does include content updated for F# 1.9.6.2 (the September 2008 CTP).
The first thing we need to do is – as with any AutoCAD .NET project – add project references to AutoCAD’s managed assemblies, acmgd.dll and acdbmgd.dll. With F#’s integration into Visual Studio 2008 you do this in exactly the same way as you would for a C# or VB.NET project, by selecting Project -> Add Reference... from the pull-down menu or right-clicking the project inside the Solution Explorer and selecting Add Reference... from the context menu.
Here you then browse to the AutoCAD 2009 folder and filter for *mgd* files (at least this is the way I do it), and select the two we want:

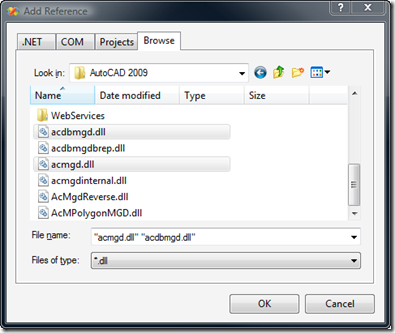

Figure 10 – Adding project references to AutoCAD’s managed assemblies
Now we need to make sure AutoCAD recognizes a module within a namespace, from which it is able to load commands. I found – by using .NET Reflector – that the appropriate structure is to declare your functions as the contents of a module (this needs to come after the #light directive):
module MyNamespace.MyApplication
Next we’re going to specify the .NET namespaces we’ll be using inside this application:
open Autodesk.AutoCAD.Runtime
open Autodesk.AutoCAD.ApplicationServices
open Autodesk.AutoCAD.DatabaseServices
We’ll then skip past our definitions of words and sortedWords, and define our command function:
[<CommandMethod("Words")>]
let listWords () =
// Let's get the usual helpful AutoCAD objects
let doc =
Application.DocumentManager.MdiActiveDocument
let ed = doc.Editor
let db = doc.Database
// "use" has the same effect as "using" in C#
use tr =
db.TransactionManager.StartTransaction();
// Get appropriately-typed BlockTable and BTRs
let bt =
tr.GetObject
(db.BlockTableId,OpenMode.ForRead)
:?> BlockTable
let ms =
tr.GetObject
(bt.[BlockTableRecord.ModelSpace],
OpenMode.ForRead)
:?> BlockTableRecord
let ps =
tr.GetObject
(bt.[BlockTableRecord.PaperSpace],
OpenMode.ForRead)
:?> BlockTableRecord
Most of this section should be familiar to anyone who has used the .NET API to AutoCAD – there are really only a couple of ideas that may need explanation:
- The use keyword is just like C#’s using – but we don’t use curly braces to define scope. The scope gets defined as the remainder of the function in which the use statement has been used. Once the function completes the used object will be disposed of automatically.
- We’re using the dynamic cast operator (:?>) to specify the type of object we’re opening with GetObject(). This operator involves a query to check whether this is valid – if we wanted to do a static cast we could use :> instead.
Now we have opened our modelspace and paperspace objects (we could go further and open other layouts, but – once again – I’ll leave that as a follow-on exercise for those who feel the need to do it :-) we can look at the code we need to extract the text from our database-resident objects.
Let’s start by defining a local function which takes an ObjectId and uses it to open an object, and for a textual object (DBText or MText) it will return its contents:
// A function that accepts an ObjectId and returns
// a list of the text contents, or an empty list.
// Note the valid use of tr, as it is in scope
let extractText x =
let obj = tr.GetObject(x,OpenMode.ForRead)
match obj with
| :? MText as m -> m.Contents
| :? DBText as d -> d.TextString
| _ -> ""
Once again we haven’t specified the type of the argument – this will be inferred by the system – but we could very easily do so. We’re using the transaction previously started in the listWords function – the reason for defining extractText local to it – which is quite valid, as it’s in scope.
After opening the object for read from its ID we’re using pattern-matching – a technique that is a huge timesaver for functional programmers – to check on the type of the object and return the appropriate property of it. This is just like a much cleaner switch statement in C#.
We could choose to match against any property of the object, but in our case we want to check the type, so use this operator: :?. The as keyword is a syntactic shortcut that defines a value we can then use to easily dereference the object and get at its properties and methods.
The final clause of the three is a wildcard: it will match all object that are not DBText or MText objects and return an empty string.
Now that we can get at the contents of our text objects, let’s write a quick recursive function to display the contents of the final list of words inside AutoCAD:
// A recursive function to print the contents of a list
let rec printList x =
match x with
| h :: t -> ed.WriteMessage("\n" + h); printList t
| [] -> ed.WriteMessage("\n")
Once again, this is a local function, so using our Editor (accessed via the ed value) is quite valid. We’re using pattern-matching again to create a recursive function (indicated via the rec keyword and then the recursive call to printList). When we find an empty list ([]) we simply print a newline, but when we find a list with a head (h) and a tail (t – which may well end up being empty, by the way, we’ll find out the next time we recurse into printList), we print the head and recurse with the tail.
One thing to look out for when defining recursive functions: they really need to be defined as tail-recursive, which means that the recursive call should be the last operation. This allows the compiler to perform tail call optimization, which replaces the declared recursion with a simply while loop inside the generated code.
Why does this matter? Well, calling a function does have some overhead, as stack space is required to store information about the function and its arguments, so if we have a list of 10,000 words to print and the function hasn’t been optimized, the recursion could cause problems. (The number could be 100,000 or 1,000,000, but the point is there is a number).
The above code does get optimized properly (even if the pattern for the empty list comes after the recursive call – it’s really about the position of the recursive call in the clause that recurses, rather than the overall program), and this is easy to check with .NET Reflector. In fact there’s an article on my blog covering just this:
http://through-the-interface.typepad.com/through_the_interface/2008/02/using-reflector.html
Seq.to_list (Seq.cast ms) @ // Create a list of modelspace ids,
Seq.to_list (Seq.cast ps) |> // appending those from paperspace
List.map extractText |> // Extract the text from each object
sortedWords |> // Get a sorted, canonical list of words
printList // Print the resultant words
A couple of comments on the above plumbing: ms and ps are both IEnumerable types (which correspond to the Seq class in F#), but are both untyped. This means we have to cast them, to be able to access them properly from F#, and then we can simply call Seq.to_list to get the contents into a list. The @ operator appends the list of ObjectIds of objects in modelspace with those in paperspace, and we then pipe the list into a call to List.map which runs our extractText function on all the objects in the combined list. The results get piped into our sortedWords function, and we finally print them to the command-line using our recursive printList function.
Finally, we’re just going to call commit on our transaction object, as for performance reasons this is currently best practice:
// As usual, committing is cheaper than aborting
tr.Commit()
That’s it for our first AutoCAD application. Let’s see the entire listing:
#light
// Declare a specific namespace and module name
module MyNamespace.MyApplication
open Autodesk.AutoCAD.Runtime
open Autodesk.AutoCAD.ApplicationServices
open Autodesk.AutoCAD.DatabaseServices
// Partial application of split which can then be
// applied to a string to retrieve the contained words
let words =
let seps = " \t~`!@#$%^&*()-=_+{}|[]\\;':\"<>?,./"
seps.ToCharArray() |> Array.to_list |> String.split
let sortedWords x =
List.map words x |> // Get the words from each string
List.concat |> // No need for the outer list
Set.of_list |> // Create a set from the list
Set.to_list // Create a list from the set
// Now we define our command
[<CommandMethod("Words")>]
let listWords () =
// Let's get the usual helpful AutoCAD objects
let doc =
Application.DocumentManager.MdiActiveDocument
let ed = doc.Editor
let db = doc.Database
// "use" has the same effect as "using" in C#
use tr =
db.TransactionManager.StartTransaction();
// Get appropriately-typed BlockTable and BTRs
let bt =
tr.GetObject
(db.BlockTableId,OpenMode.ForRead)
:?> BlockTable
let ms =
tr.GetObject
(bt.[BlockTableRecord.ModelSpace],
OpenMode.ForRead)
:?> BlockTableRecord
let ps =
tr.GetObject
(bt.[BlockTableRecord.PaperSpace],
OpenMode.ForRead)
:?> BlockTableRecord
// Now the fun starts...
// A function that accepts an ObjectId and returns
// a list of the text contents, or an empty list.
// Note the valid use of tr, as it is in scope
let extractText x =
let obj = tr.GetObject(x,OpenMode.ForRead)
match obj with
| :? MText as m -> m.Contents
| :? DBText as d -> d.TextString
| _ -> ""
// A recursive function to print the contents of a list
let rec printList x =
match x with
| h :: t -> ed.WriteMessage("\n" + h); printList t
| [] -> ed.WriteMessage("\n")
// And here's where we plug everything together...
Seq.to_list (Seq.cast ms) @ // Create a list of modelspace ids,
Seq.to_list (Seq.cast ps) |> // appending those from paperspace
List.map extractText |> // Extract the text from each object
sortedWords |> // Get a sorted, canonical list of words
printList // Print the resultant words
// As usual, committing is cheaper than aborting
tr.Commit()
Introducing parallel processing in AutoCAD via F# Asynchronous Workflows
As mentioned previously, pure functional code lends itself to be run on multiple computing cores in parallel. While the tools aren’t yet there to make this happen automatically – via implicit parallelization – this is a likely outcome, over the coming years. For now we have the possibility of writing code that uses explicit parallelization – where we specify the tasks we know can be executed at the same time and leave the language and runtime to take care of the coordination.
There are a couple of ways to do this, right now: the Parallel Extensions to .NET (also in CTP stage and due for inclusion in Visual Studio 2010) provide a number of parallel constructs, such as parallel versions of for and while loops. F# currently provides the capability to define and execute Asynchronous Workflows, which is what we’re going to look at now.

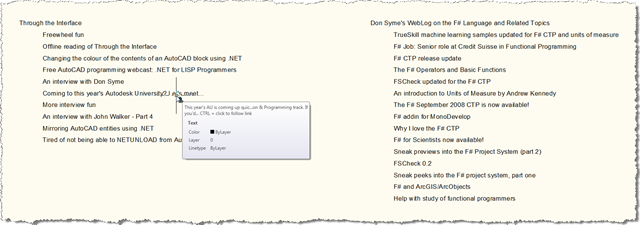

First, let’s take a look at a sample application that we’re going to parallelize. This sample goes through and queries, via RSS, the latest posts on a number of different blogs. It then generates AutoCAD geometry – text with a hyperlink – for each of these posts. So we turn AutoCAD into an RSS reader, for all intents and purposes.
1 // Use lightweight F# syntax
2
3 #light
4
5 // Declare a specific namespace and module name
6
7 module MyNamespace.MyApplication
8
9 // Import managed assemblies
10
11 open Autodesk.AutoCAD.Runtime
12 open Autodesk.AutoCAD.ApplicationServices
13 open Autodesk.AutoCAD.DatabaseServices
14 open Autodesk.AutoCAD.Geometry
15 open System.Xml
16 open System.IO
17 open System.Net
18
19 // The RSS feeds we wish to get. The first two values are
20 // only used if our code is not able to parse the feed's XML
21
22 let feeds =
23 [ ("Through the Interface",
24 "http://blogs.autodesk.com/through-the-interface",
25 "http://through-the-interface.typepad.com/through_the_interface/atom.xml");
26
27 ("Don Syme's F# blog",
28 "http://blogs.msdn.com/dsyme/",
29 "http://blogs.msdn.com/dsyme/rss.xml");
30
31 ("Shaan Hurley's Between the Lines",
32 "http://autodesk.blogs.com/between_the_lines",
33 "http://autodesk.blogs.com/between_the_lines/rss.xml");
34
35 ("Scott Sheppard's It's Alive in the Lab",
36 "http://blogs.autodesk.com/labs",
37 "http://labs.blogs.com/its_alive_in_the_lab/rss.xml");
38
39 ("Volker Joseph's Beyond the Paper",
40 "http://blogs.autodesk.com/beyond_the_paper",
41 "http://dwf.blogs.com/beyond_the_paper/atom.xml") ]
