In the last post we looked at some code to create a table of attribute values for a particular block. In this post we'll extend that code and show how to use a formula to create a total of those values.
Below is the C# code. I've numbered the lines, and those in red are new since the last post. The complete source file can be downloaded here.
Firstly, a quick breakdown of the changes:
- Lines 60-81 deal with user input, and the forcing of the decision to "embed" rather than "link", if we're performing the total (table formulae do not work with fields, even if they have numeric results, so we're forced to create the table with the current value, rather than a field pointing to the attribute reference)
- Line 134 and subsequently lines 159-166 declare and set a variable indicating for which column we're going to provide a total
- Lines 169-181 deal with the exceptional case that we don't find the specified attribute definition
- Lines 310-336 create our additional row, and insert the total in the appropriate cell. We're using a formula such as this: %<\AcExpr (Sum(A2:A4)) \f "%lu2%pr2">%
- The \f flag specifies we want a numeric value with 2 decimal places - these codes are not documented, but you can find them out by using the FIELD command, as described in this previous post
- Line 343 performs a regen, to update the value of our field
And now for the code:
1 using Autodesk.AutoCAD.ApplicationServices;
2 using Autodesk.AutoCAD.DatabaseServices;
3 using Autodesk.AutoCAD.EditorInput;
4 using Autodesk.AutoCAD.Geometry;
5 using Autodesk.AutoCAD.Runtime;
6 using System.Collections.Specialized;
7 using System;
8
9 namespace TableCreation
10 {
11 public class Commands
12 {
13 // Set up some formatting constants
14 // for the table
15
16 const double colWidth = 15.0;
17 const double rowHeight = 3.0;
18 const double textHeight = 1.0;
19 const CellAlignment cellAlign =
20 CellAlignment.MiddleCenter;
21
22 // Helper function to set text height
23 // and alignment of specific cells,
24 // as well as inserting the text
25
26 static public void SetCellText(
27 Table tb,
28 int row,
29 int col,
30 string value
31 )
32 {
33 tb.SetAlignment(row, col, cellAlign);
34 tb.SetTextHeight(row, col, textHeight);
35 tb.SetTextString(row, col, value);
36 }
37
38 [CommandMethod("BAT")]
39 static public void BlockAttributeTable()
40 {
41 Document doc =
42 Application.DocumentManager.MdiActiveDocument;
43 Database db = doc.Database;
44 Editor ed = doc.Editor;
45
46 // Ask for the name of the block to find
47
48 PromptStringOptions opt =
49 new PromptStringOptions(
50 "\nEnter name of block to list: "
51 );
52 PromptResult pr = ed.GetString(opt);
53
54 if (pr.Status == PromptStatus.OK)
55 {
56 string blockToFind =
57 pr.StringResult.ToUpper();
58 bool embed = false;
59
60 // And the attribute to provide total for
61
62 opt.Message =
63 "\nEnter name of column to total <\"\">: ";
64 pr = ed.GetString(opt);
65
66 if (pr.Status == PromptStatus.None ||
67 pr.Status == PromptStatus.OK)
68 {
69 string columnToTotal =
70 pr.StringResult.ToUpper();
71
72 if (columnToTotal != "")
73 {
74 // If a column has been chosen, we need
75 // to embed the attribute values
76 // as otherwise the "sum" formula will fail
77
78 embed = true;
79 }
80 else
81 {
82 // Ask whether to embed or link
83
84 PromptKeywordOptions pko =
85 new PromptKeywordOptions(
86 "\nEmbed or link the attribute values: "
87 );
88
89 pko.AllowNone = true;
90 pko.Keywords.Add("Embed");
91 pko.Keywords.Add("Link");
92 pko.Keywords.Default = "Embed";
93 PromptResult pkr =
94 ed.GetKeywords(pko);
95
96 if (pkr.Status == PromptStatus.None ||
97 pkr.Status == PromptStatus.OK)
98 {
99 if (pkr.Status == PromptStatus.None ||
100 pkr.StringResult == "Embed")
101 embed = true;
102 else
103 embed = false;
104 }
105 }
106
107 Transaction tr =
108 doc.TransactionManager.StartTransaction();
109 using (tr)
110 {
111 // Let's check the block exists
112
113 BlockTable bt =
114 (BlockTable)tr.GetObject(
115 doc.Database.BlockTableId,
116 OpenMode.ForRead
117 );
118
119 if (!bt.Has(blockToFind))
120 {
121 ed.WriteMessage(
122 "\nBlock "
123 + blockToFind
124 + " does not exist."
125 );
126 }
127 else
128 {
129 // And go through looking for
130 // attribute definitions
131
132 StringCollection colNames =
133 new StringCollection();
134 int colToTotalIdx = -1;
135
136 BlockTableRecord bd =
137 (BlockTableRecord)tr.GetObject(
138 bt[blockToFind],
139 OpenMode.ForRead
140 );
141 foreach (ObjectId adId in bd)
142 {
143 DBObject adObj =
144 tr.GetObject(
145 adId,
146 OpenMode.ForRead
147 );
148
149 // For each attribute definition we find...
150
151 AttributeDefinition ad =
152 adObj as AttributeDefinition;
153 if (ad != null)
154 {
155 // ... we add its name to the list
156
157 colNames.Add(ad.Tag);
158
159 if (ad.Tag.ToUpper() == columnToTotal)
160 {
161 // Save the index of the column
162 // we want to total
163
164 colToTotalIdx =
165 colNames.Count - 1;
166 }
167 }
168 }
169 // If we didn't find the attribute to be totalled
170 // then simply ignore the request and continue
171
172 if (columnToTotal != "" && colToTotalIdx < 0)
173 {
174 ed.WriteMessage(
175 "\nAttribute definition for "
176 + columnToTotal
177 + " not found in "
178 + blockToFind
179 + ". Total will not be added to the table."
180 );
181 }
182 if (colNames.Count == 0)
183 {
184 ed.WriteMessage(
185 "\nThe block "
186 + blockToFind
187 + " contains no attribute definitions."
188 );
189 }
190 else
191 {
192 // Ask the user for the insertion point
193 // and then create the table
194
195 PromptPointResult ppr =
196 ed.GetPoint(
197 "\nEnter table insertion point: "
198 );
199
200 if (ppr.Status == PromptStatus.OK)
201 {
202 Table tb = new Table();
203 tb.TableStyle = db.Tablestyle;
204 tb.NumRows = 1;
205 tb.NumColumns = colNames.Count;
206 tb.SetRowHeight(rowHeight);
207 tb.SetColumnWidth(colWidth);
208 tb.Position = ppr.Value;
209
210 // Let's add our column headings
211
212 for (int i = 0; i < colNames.Count; i++)
213 {
214 SetCellText(tb, 0, i, colNames[i]);
215 }
216
217 // Now let's search for instances of
218 // our block in the modelspace
219
220 BlockTableRecord ms =
221 (BlockTableRecord)tr.GetObject(
222 bt[BlockTableRecord.ModelSpace],
223 OpenMode.ForRead
224 );
225
226 int rowNum = 1;
227 foreach (ObjectId objId in ms)
228 {
229 DBObject obj =
230 tr.GetObject(
231 objId,
232 OpenMode.ForRead
233 );
234 BlockReference br =
235 obj as BlockReference;
236 if (br != null)
237 {
238 BlockTableRecord btr =
239 (BlockTableRecord)tr.GetObject(
240 br.BlockTableRecord,
241 OpenMode.ForRead
242 );
243 using (btr)
244 {
245 if (btr.Name.ToUpper() == blockToFind)
246 {
247 // We have found one of our blocks,
248 // so add a row for it in the table
249
250 tb.InsertRows(
251 rowNum,
252 rowHeight,
253 1
254 );
255
256 // Assume that the attribute refs
257 // follow the same order as the
258 // attribute defs in the block
259
260 int attNum = 0;
261 foreach (
262 ObjectId arId in
263 br.AttributeCollection
264 )
265 {
266 DBObject arObj =
267 tr.GetObject(
268 arId,
269 OpenMode.ForRead
270 );
271 AttributeReference ar =
272 arObj as AttributeReference;
273 if (ar != null)
274 {
275 // Embed or link the values
276
277 string strCell;
278 if (embed)
279 {
280 strCell = ar.TextString;
281 }
282 else
283 {
284 string strArId =
285 arId.ToString();
286 strArId =
287 strArId.Trim(
288 new char[] { '(', ')' }
289 );
290 strCell =
291 "%<\\AcObjProp Object("
292 + "%<\\_ObjId "
293 + strArId
294 + ">%).TextString>%";
295 }
296 SetCellText(
297 tb,
298 rowNum,
299 attNum,
300 strCell
301 );
302 }
303 attNum++;
304 }
305 rowNum++;
306 }
307 }
308 }
309 }
310
311 // Now let's add a row for our total
312
313 if (colToTotalIdx >= 0)
314 {
315 tb.InsertRows(rowNum, rowHeight, 1);
316 char colLetter =
317 Convert.ToChar(
318 (Convert.ToInt32(
319 'A') + colToTotalIdx
320 )
321 );
322
323 // Add a formula to sum the column
324
325 SetCellText(
326 tb,
327 rowNum,
328 colToTotalIdx,
329 "%<\\AcExpr (Sum("
330 + colLetter
331 + "2:"
332 + colLetter
333 + rowNum.ToString()
334 + ")) \\f \"%lu2%pr2\">%"
335 );
336 }
337 tb.GenerateLayout();
338
339 ms.UpgradeOpen();
340 ms.AppendEntity(tb);
341 tr.AddNewlyCreatedDBObject(tb, true);
342 tr.Commit();
343 ed.Regen();
344 }
345 }
346 }
347 }
348 }
349 }
350 }
351 }
352 }

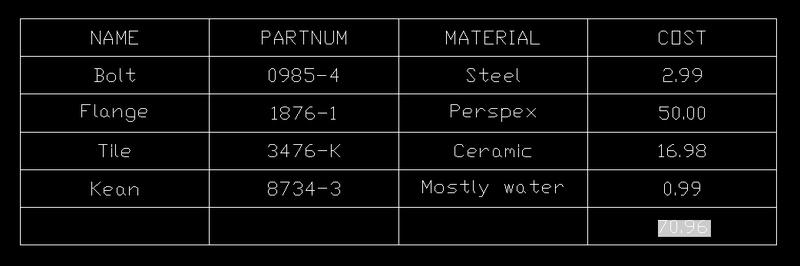

Here's what happens when you run the updated BAT command against the data I used last time:
